10 Marla House Design Pakistan — 40×60 Floor Plan & 3D Elevation
40×60 House Plan — Complete Ground Floor Layout for a Modern Pakistani Home
Designing a residential layout that balances spatial efficiency with high-end luxury requires a deep understanding of functional architecture. This 40×60 house plan presents an exceptional solution for modern families seeking the perfect balance between private sanctuaries and expansive social zones — all within a standard Pakistani residential plot.
The 40 60 house plan is crafted for a premium lifestyle, focusing heavily on optimizing every square inch while embedding structural provisions for natural ventilation, independent circulation, and seamless zoning. Unlike standard layouts that compromise room sizes to squeeze in extra features, this 40×60 home plan prioritizes generous volumes — making it one of the most practical house designs for a 40×60 plot available in Pakistan today.
This layout caters perfectly to medium-to-large families looking to build a home that offers long-term flexibility, high aesthetic value, and practical everyday utility. By carefully separating guest entertainment areas from the private family core, the 40 60 house design addresses contemporary lifestyle requirements, ensuring comfort, ease of maintenance, and an inviting ambiance throughout.

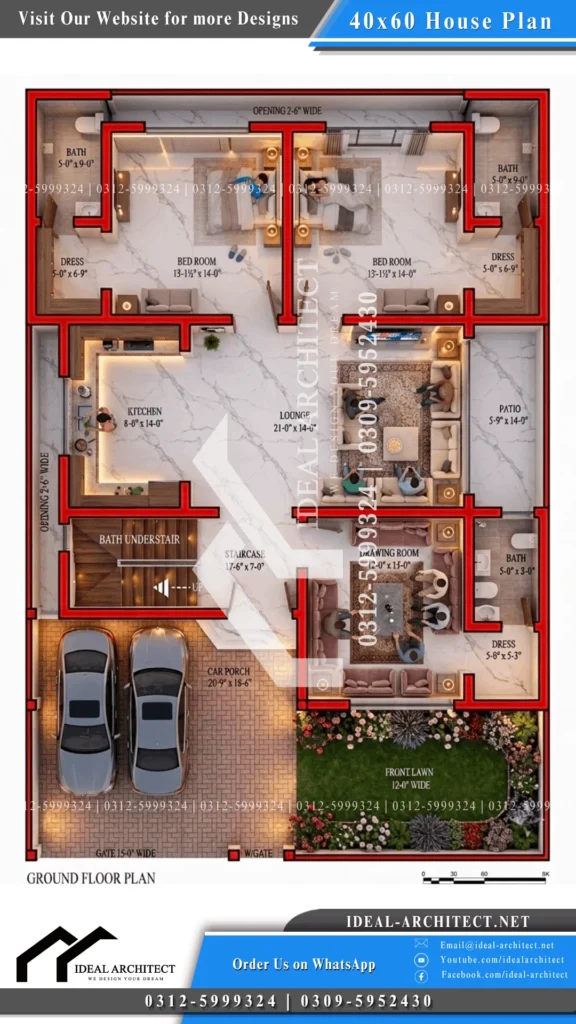

40×60 Floor Plan — Entrance, Car Porch and Front Zoning
The architectural flow of this 40×60 house plan layout is rooted in a clear hierarchy of spaces. Access begins at a wide entrance gate leading into a sprawling car porch measuring 20′-9″ × 18′-6″ — large enough to accommodate two full-sized SUVs side by side without crowding the main entrance pathways.
Alongside the porch, a 12-foot-wide front green lawn enhances the property’s curb appeal and softens the hardscape. It sits directly in front of the drawing room’s large windows, offering a pleasant view for visitors and improving the microclimate around the house front.
The entrance point branches into two distinct circulation paths — one directing formal guests straight into the drawing room suite, and another leading residents directly to the main staircase lobby and the central living core. This smart zoning is one of the defining advantages of this 40×60 home plans layout.
40×60 House Design — Drawing Room, Lounge and Kitchen
The Drawing Room sits at the front right corner measuring 12′-0″ × 15′-0″, offering complete isolation from the home’s private zones. It features independent access from the porch area, keeping guest foot traffic separate from the main family lounge. Its attached dressing area and dedicated luxury bathroom make it highly versatile for both formal hosting and guest accommodation.
The Central Lounge is the heart of this house design 40×60 — an expansive 21′-0″ × 14′-0″ space that serves as the functional anchor from which all other primary zones branch out. A large glass sliding door connects it directly to a 5′-9″ × 14′-0″ open-to-sky patio, flooding the living area with natural daylight throughout the day.
The Kitchen at 8′-6″ × 14′-0″ sits to the left of the lounge. Its wide window opens into a 2′-6″ side passage, ensuring cooking heat and odors are vented directly outdoors — a thoughtful detail in this 40×60 house plan 3bhk compatible layout.
40×60 House Plan — Bedrooms, Bathrooms and Natural Ventilation
Two symmetrical rear bedrooms — each 13′-1½” × 14′-0″ — form the private core of this 40 60 house plan 3d layout. Each bedroom features an independent walk-in dressing area and an attached luxury bathroom (5′-0″ × 9′-0″), positioned at the rear corners for maximum privacy and minimum street noise.
The staircase at 17′-6″ × 7′-0″ is centrally accessible from the porch entry lobby, designed to facilitate future upper-floor independence. A functional bathroom is smartly tucked beneath the stairs, maximizing every square foot of the 40×60 house design.
Natural ventilation is built into the perimeter through a 2′-6″ wide left passage and 2′-6″ rear setback — ensuring every bedroom, bathroom, and kitchen receives functional exterior windows and continuous cross-ventilation throughout the day.
10 Marla House Plan Pakistan — Complete Naksha and Map Details
A well-structured 10 marla house plan is the foundation of every successful residential build in Pakistan. Whether you are planning in a city neighbourhood or a rural area, the 10 marla house layout must address family privacy, independent circulation, and long-term flexibility — all within a 40×60 plot.
This 10 marla house plan Pakistan is designed as a double-storey structure where both floors are vertically aligned, meaning plumbing, structural load-bearing walls, and room placements stack cleanly on top of one another — reducing construction cost and complexity significantly.
This ghar ka naksha 10 marla is ideal for families who want independent living across two floors — whether for a joint family setup or to keep the upper portion available for rental income.

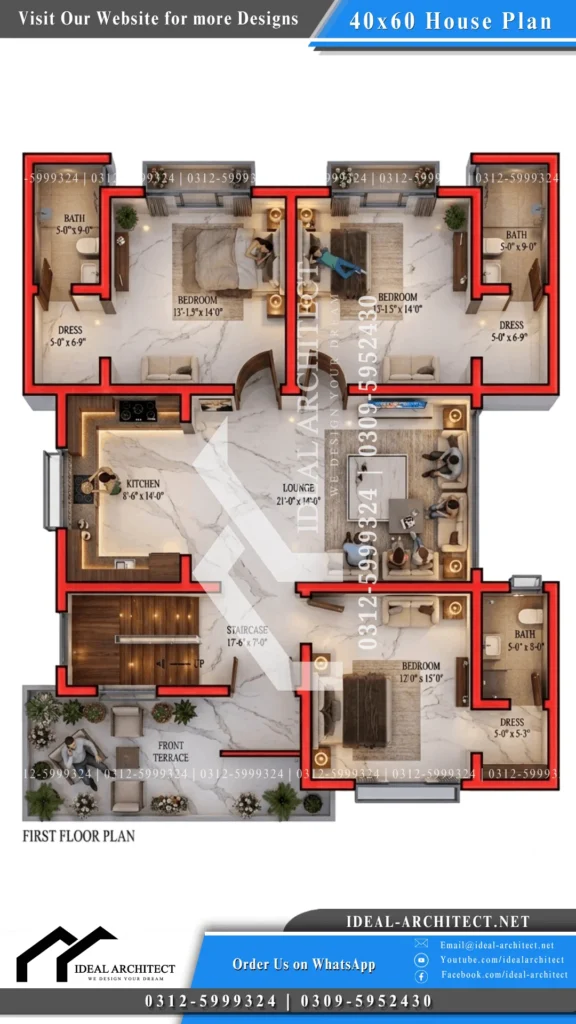

10 Marla House Naksha — First Floor Layout and Room Zoning
The naqsha house 10 marla first floor is a complete self-sustaining unit. Access is managed through the continuous independent staircase tower, arriving at a dedicated upper landing — meaning upper-floor residents never need to cross the ground floor’s private areas.
The ten marla house map reveals a clever transformation on the first floor: the formal ground-floor drawing room converts into an expansive front master bedroom, while the open car porch becomes a grand open-to-sky front terrace. The central lounge remains the heart of the floor, maintaining vertical consistency for structural and plumbing lines.
10 Marla House Map — Room-by-Room Breakdown
Front Bedroom — 12′-0″ × 15′-0″ Directly accessible from the staircase landing, this front-facing bedroom enjoys views of the front lawn below. King-size bed, media console and lounge seating all fit comfortably. Its attached dressing area and ensuite bathroom (5′-0″ × 8′-0″) make it ideal as a primary master suite or premium guest room.
Family Lounge — 21′-0″ × 14′-0″ The central lounge on the first floor plays the same anchoring role as on the ground floor — all three bedrooms and the kitchen branch directly from this hub. The right-side patio opening continues to draw natural light into the core of this 10 marla house plan, keeping the space bright and airy throughout the day.
Independent Kitchen — 8′-6″ × 14′-0″ Positioned directly above the ground-floor kitchen, this upper kitchen maintains the same efficient linear layout. The vertical alignment simplifies plumbing runs and reduces construction costs — a key practical advantage of this home naksha 10 marla design. A wide side window ensures cooking heat vents safely outdoors.
Front Terrace Built over the car porch footprint, this open-to-sky terrace is one of the most valued features of this 10 marla house layout. It functions as an elevated outdoor living space — ideal for evening seating, micro-gardening, or simply enjoying elevated street views.
10 Marla Naksha — Rear Bedrooms and Private Zone
The rear section of the first floor in this 10 marla house naksha is strictly reserved for privacy. Two symmetrical bedrooms — each 13′-1½” × 14′-0″ — sit at the rear corners, perfectly mirroring the ground-floor layout.
Both rear bedrooms include:
- Independent walk-in dressing area
- Attached luxury bathroom 5′-0″ × 9′-0″
- Rear exterior window for cross-ventilation
- Complete isolation from front gate and street-level activity
This rear zoning in the 10 marla house map makes it especially well-suited for multi-generational families — elderly parents on the ground floor, children’s family upstairs — each with full independence and privacy.
10 Marla House Plan — Natural Ventilation and Lighting
The passive ventilation strategy in this 10 marla house plan Pakistan is one of its strongest technical features. The left and rear open setbacks of 2′-6″ are maintained on both floors, ensuring every single room — bedroom, bathroom, and kitchen — has a functional exterior window.
On the first floor, the elevated position captures higher wind currents and more ambient sunlight than the ground floor, making artificial lighting largely unnecessary during daytime hours. The central patio opening continues to draw light into the middle of the building, keeping the lounge core consistently bright and fresh.

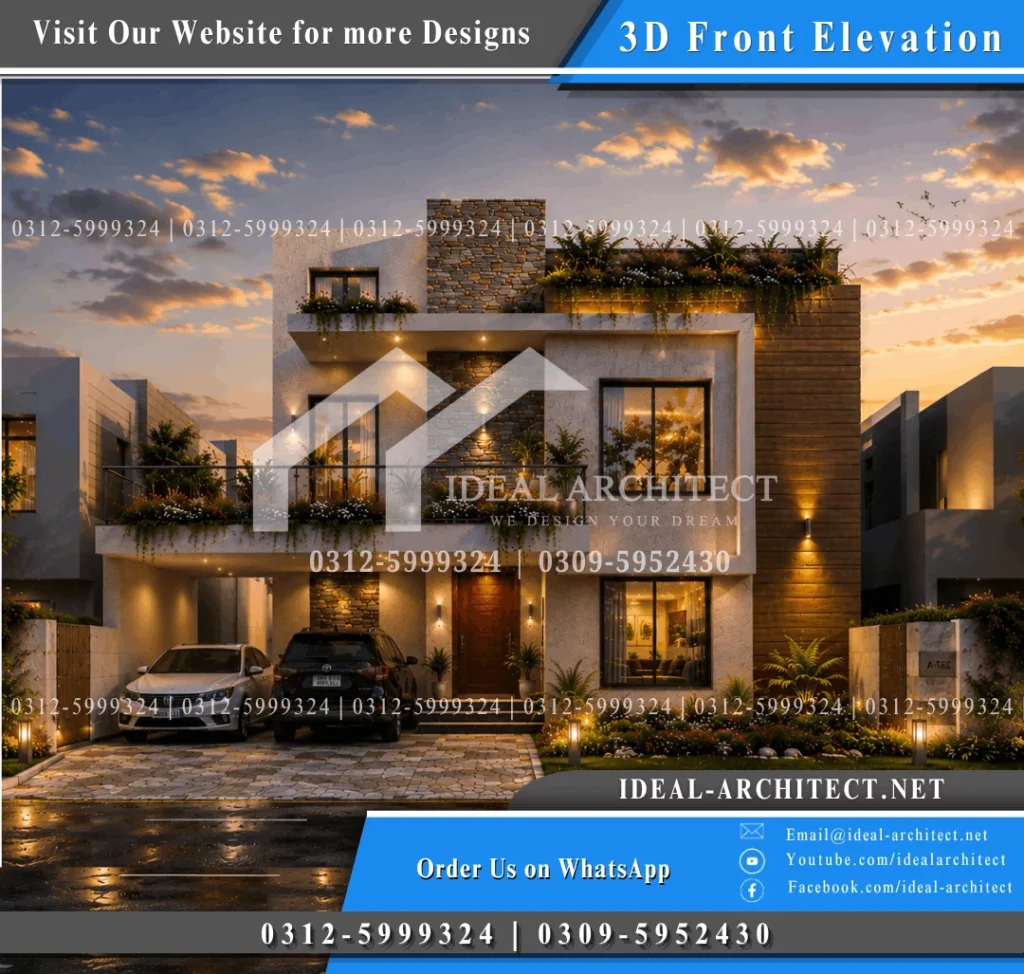

10 Marla House Design Pakistan — Modern 3D Elevation and Front Design
The 10 marla house design Pakistan showcased here belongs to the Contemporary Cubist style — a bold architectural approach that is rapidly gaining popularity across modern Pakistani housing societies. This modern 10 marla house design steps away from traditional symmetrical facades by incorporating layered geometric masses, rich natural materials, and integrated biophilic elements that give the home a distinctive premium presence.
This 10 marla front elevation is designed to deliver an estate-like curb appeal even on a standard urban plot — making it equally suitable for Bahria Town, DHA, or any contemporary housing society across Pakistan.
10 Marla House 3D Design — Architectural Style and Massing
The visual identity of this 10 marla house 3d design is anchored by three primary structural elements working together:
Central Stone Masonry Tower — Extends past the roofline, grounding the building and providing a strong visual anchor for the entire composition.
Wood-Clad Vertical Volume — Applied on the right flank, this warm timber-finish panel adds organic character and balances the open volume of the car porch on the left.
Cantilevering Horizontal Balcony — A clean concrete cantilever links both vertical masses at the mid-level, giving the 10 marla house elevation a dynamic, floating quality.
Contemporary design principles govern the entire look — clean rooflines, complete absence of decorative moldings or classical columns, and dark matte aluminum window profiles that define every edge with precision.

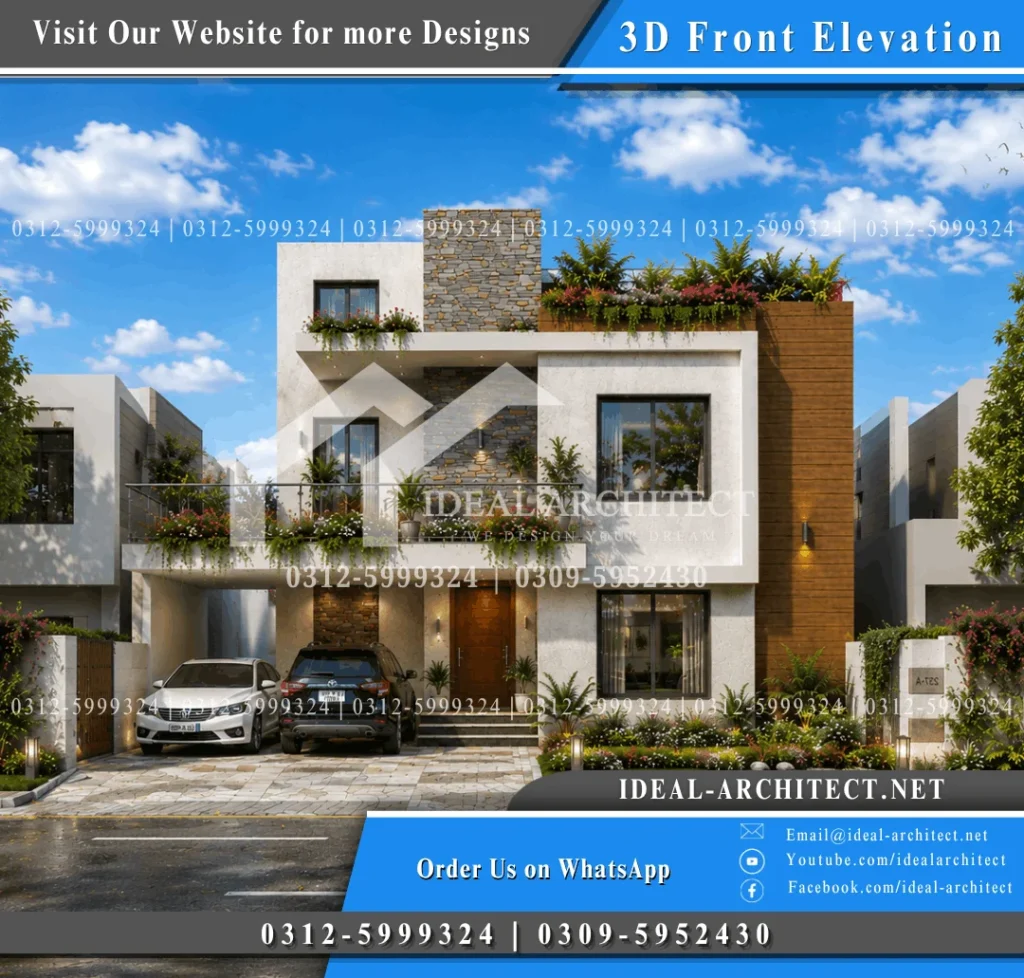

Modern 10 Marla House Design — Front Elevation Analysis
The 10 marla house design pictures front view reveals a ground floor anchored by a deep double car porch on the left. A heavy horizontal concrete beam supports the structure above and forms the base of the first-floor balcony. The main entrance sits adjacent to the parking area, elevated by dark stone steps, with a solid recessed timber door that stays protected from rain and direct sunlight.
On the right, a massive white architectural frame encompasses both ground and first-floor lounge windows — jutting slightly forward to create shadow lines and visual depth across the 10 marla front elevation.
At the mid-level, the cantilevering balcony extends over the car porch with a slim glass panel railing and built-in planter boxes filled with cascading vines. At the roof level, the central stone tower terminates cleanly while a lush parapet garden wall softens the top edge of this 10 marla house design double story composition.
10 Marla House Design — Exterior Lighting and Landscaping
Exterior lighting in this 10 marla home design is designed to highlight the building’s rich material textures after dark:
Vertical Sconces mounted on the stone tower and wood panels cast warm pools of light that accentuate the rough masonry and timber grain. Recessed Spotlights built into the balcony cantilever undersides wash the main entry and car porch in a soft welcoming glow. Landscape Bollards line the front garden pathways, illuminating softscape while keeping the perimeter secure.
The front landscaping combines a manicured lawn, broad-leafed ferns, white flowering shrubs, and potted tropical plants flanking the entrance steps. This ground-level greenery connects directly with the first-floor balcony planters and the rooftop garden, creating a continuous vertical landscape that naturally cools the building and enhances the overall 10 marla house design Pakistan aesthetic.
Exterior Materials — 10 Marla House Design Pakistan
| Material | Application | Key Advantage |
|---|---|---|
| Off-White Plaster / Stucco | Primary walls and geometric frames | Reduces solar heat gain, cost-effective, durable |
| Fieldstone / Ashlar Stone Cladding | Central tower and recessed accent walls | Zero maintenance, exceptional weather resistance |
| HPL / WPC Wood-Grain Panels | Right boundary feature wall and roof trim | UV resistant, no warping, long-lasting finish |
| Powder-Coated Aluminum | Window frames and balcony railings | Wind load resistant, rust-free, low maintenance |
| Tempered Glass | Large lounge windows and balcony panels | Maximum safety, excellent daylighting |
| Built-in Waterproofing Membrane | Planter boxes and green roof slabs | Prevents water seepage into structural slabs |
Frequently Asked Questions — 10 Marla House Design Pakistan
Q: What is the plot size of a 10 marla house in Pakistan? A standard 10 marla plot in Pakistan measures 40×60 feet, giving a total area of 2,400 square feet. This is one of the most common residential plot sizes found in housing societies across Lahore, Islamabad, Rawalpindi, and other major cities.
Q: Is a 10 marla plot suitable for a double storey house? Yes — a 10 marla house design double storey is one of the most popular configurations in Pakistan. The 40×60 footprint provides ample space for a complete ground floor with drawing room, lounge, kitchen, and two bedrooms, plus a full independent first floor with three bedrooms, a family lounge, and a separate kitchen.
Q: How many bedrooms can fit in a 10 marla house plan? A single storey 10 marla house plan comfortably accommodates 2 large bedrooms on the ground floor. A double storey design increases total bedrooms to 4 or 5, making it ideal for medium to large families.
Q: What is the difference between a 10 marla house naksha and a house map? Both terms refer to the floor plan or blueprint of the house. “Naksha” (or “naqsha”) is the Urdu term commonly used in Pakistan, while “house map” refers to the same technical drawing showing room dimensions, door and window placements, and overall layout.
Q: Can a 10 marla house design in Pakistan include a separate apartment on the upper floor? Yes — the independent staircase design in this 10 marla house plan Pakistan is specifically built to allow the upper floor to function as a completely separate unit. The upper floor has its own kitchen, lounge, and bedrooms, making it ideal for rental income or independent living for an extended family.
Q: What architectural style is best for a modern 10 marla house design in Pakistan? The Contemporary Cubist style is currently the most popular choice for a modern 10 marla house design in Pakistan. It offers clean geometric lines, natural material combinations such as stone cladding and wood panels, and integrated green terraces — all of which deliver a premium look within a practical construction budget.
