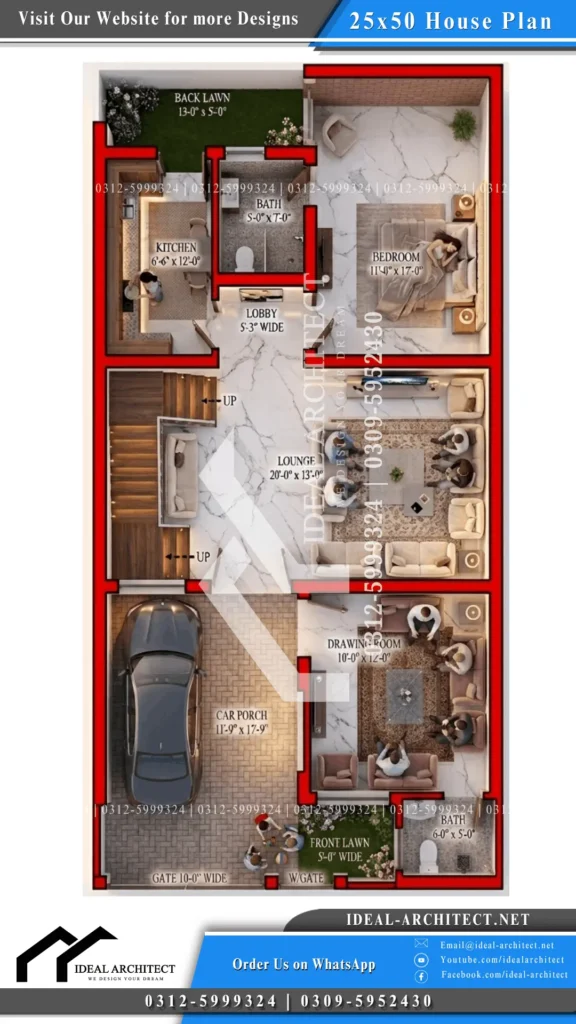

5 Marla House Plan | 25×50 House Plan – Complete Layout & Room Breakdown
Finding a 5 marla house plan that genuinely works — not just on paper but in real day-to-day living — is harder than most people expect. A lot of 25×50 house plan layouts look balanced in a sketch but feel cramped once walls go up and furniture goes in. This modern 25×50 house plan was designed the other way around: starting from how a Pakistani family actually moves through a home, then working backward to where each room needs to sit and how large it needs to be to do its job properly. Here is a complete room-by-room breakdown of this five marla house plan with full dimensions and benefits.
Car Porch – 5 Marla House Layout Plan
Size: 11′-9″ × 17′-9″ | Main Gate: 10′-0″ Wide
The 17′-9″ depth is what makes this porch genuinely functional. A standard sedan parks with full depth remaining, and one or two bikes fit alongside without blocking the gate. The 10′-0″ wide main gate means a car enters and exits cleanly — no three-point manoeuvres, no scraping boundary walls. In a home design 5 marla layout where the front strip is already tight, getting the porch dimensions right at this stage saves a lot of frustration later.
Front Lawn – 25×50 House Plan Curb Appeal
Size: 5′-0″ Wide
Five feet sounds narrow but in a 25 50 house plan it is the right call. Wide enough to carry proper plantation and give the drawing room direct natural light and fresh air from the street side, narrow enough to not eat into the plot area that the porch and interior rooms need. This strip is what gives the front of the house its breathing room from the boundary wall and sets the tone for the elevation before anyone steps through the gate.
Drawing Room with Attached Bath – Five Marla House Plan
Drawing Room: 10′-0″ × 12′-0″ | Attached Bath: 6′-0″ × 5′-0″
The 10′-0″ × 12′-0″ drawing room sits right off the entrance with its own dedicated bath — and that placement is one of the most considered decisions in this five marla house plan. Guests land in a proper receiving space and have their own bathroom without needing to step into the interior of the house at all. For a Pakistani home where guest privacy and family privacy need to coexist without awkwardness, this arrangement handles both without any compromise. The 6′-0″ × 5′-0″ attached bath fits a vanity, commode, and shower without feeling squeezed.
TV Lounge – Home Design 5 Marla Central Hub
Size: 20′-0″ × 13′-0″
That 20-foot length is genuinely generous for a home design 5 marla layout. It creates a central family space that handles large gatherings, a full sofa arrangement, and a proper media wall without furniture eating up the floor. The staircase rises from within the lounge itself — keeping circulation central and giving the interior a modern, open feel rather than hiding the stairs in a back corner where they make the plan feel chopped up. This lounge is the room the whole ground floor is organised around.
Kitchen & Lobby – Modern 25×50 House Plan
Kitchen: 6′-6″ × 12′-0″ | Lobby: 5′-3″ Wide
The kitchen runs long rather than wide — 12 feet of counter and cabinet length means a properly fitted kitchen with actual storage rather than the compressed two-wall setups that most 5 marla house layout plan designs default to. The 5′-3″ wide lobby just outside keeps movement between the lounge, kitchen, and bedroom zone smooth. No bottleneck, no congestion — just clean circulation through the middle of the house.
Master Bedroom with Attached Bath – 5 Marla House Plan
Master Bedroom: 11′-0″ × 17′-0″ | Master Bath: 5′-0″ × 7′-0″
Seventeen feet of bedroom length on a ground floor is genuinely luxurious for a 25 * 50 house plan. A double bed goes in, a full wardrobe sits beside it, and there is still clear walking space on three sides without anything feeling tight. The attached bath at 5′-0″ × 7′-0″ fits a shower, vanity, and commode at proper dimensions — not the scaled-down versions that most ground floor baths end up as in tighter layouts.
Back Lawn – 25×50 House Plan Ventilation & Utility
Size: 13′-0″ × 5′-0″
In Pakistan’s climate this strip of open space at the back does more work than its size suggests. It gives the master bedroom and kitchen cross-ventilation from both sides, keeps the back wall dry through monsoon season, and doubles as a laundry or washing area without using any interior floor space. Cross-ventilation in a 25×50 house plan is not a luxury — it is what keeps the house comfortable through summer without mechanical cooling doing all the work.
5 Marla House Map – Complete Ground Floor Size Table
| Area / Room | Dimensions (Size) |
|---|---|
| Car Porch | 11′-9″ × 17′-9″ |
| Main Gate | 10′-0″ Wide |
| Front Lawn | 5′-0″ Wide |
| Drawing Room | 10′-0″ × 12′-0″ |
| Drawing Room Bath | 6′-0″ × 5′-0″ |
| TV Lounge | 20′-0″ × 13′-0″ |
| Kitchen | 6′-6″ × 12′-0″ |
| Lobby | 5′-3″ Wide |
| Master Bed Room | 11′-0″ × 17′-0″ |
| Master Bath | 5′-0″ × 7′-0″ |
| Back Lawn | 13′-0″ × 5′-0″ |

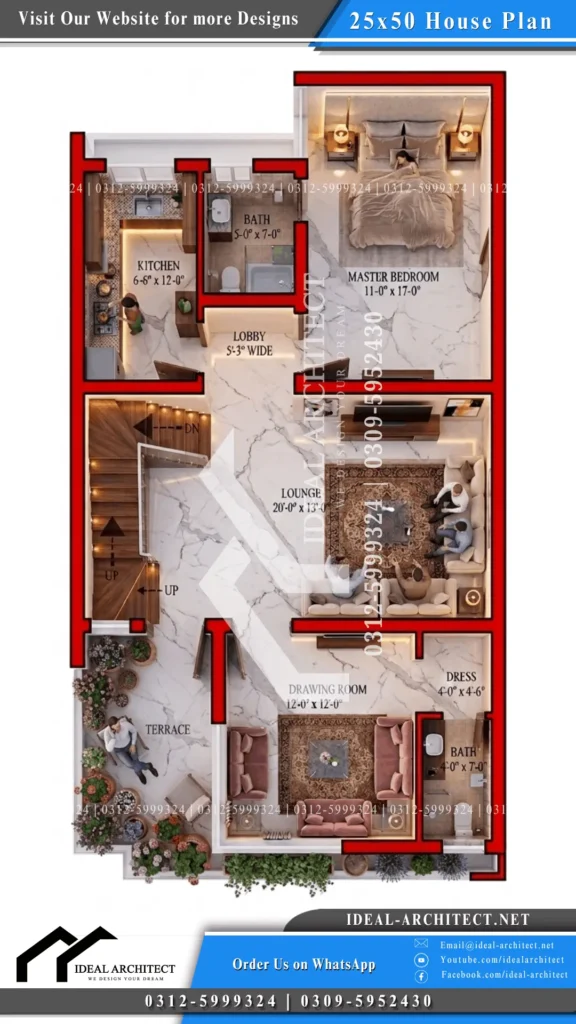

25 x 50 House Design – First Floor Layout & Independent Living Breakdown
One of the biggest advantages of this 25 x 50 house design is what happens on the first floor. The upper level has been planned so carefully that it functions as a completely independent home — separate kitchen, separate lounge, separate bedrooms — which means whether you have a joint family sharing the house or you want to rent the upper portion out entirely, this floor handles both situations without any structural changes or awkward shared spaces. Here is the complete room-by-room breakdown of this 5 marla house naksha first floor.
Front Terrace – 25 * 50 House Design Open Space
Size: Open Space (Over Car Porch Area)
The terrace sits directly above the car porch at the front of the house — and in this 25 * 50 house design, it does more than just add open space. Evening seating, a small rooftop garden, potted plants, or simply a place to catch some air after a long day — this terrace covers all of it without eating into any interior room area. It also gives the front of the house a strong double-story visual presence that most flat-roofed first floors completely miss.
Front Bedroom with Dress & Bath – 5 Marla House Map
Bedroom: 12′-0″ × 12′-0″ | Dressing: 4′-0″ × 4′-6″ | Bath: 4′-0″ × 7′-0″
Sitting directly above the ground floor drawing room, this bedroom in the 5 marla house map comes with two features that most first-floor front bedrooms skip — a dedicated dressing area and an attached bath. The 12′-0″ × 12′-0″ square proportion is one of the easiest sizes to furnish well; a double bed, two side tables, and a study desk all fit without the room feeling arranged rather than lived in. The separate 4′-0″ × 4′-6″ dressing recess keeps wardrobes and clothing storage completely out of the main bedroom, which is what keeps the room feeling open despite the square footage. The window opens directly toward the terrace, so this room gets cross-ventilation and morning light without any obstruction.
First Floor TV Lounge – Home Design 25 x 50
Size: 20′-0″ × 13′-0″
The same 20′-0″ × 13′-0″ lounge from the ground floor is carried through to the first floor in this home design 25 x 50 layout — and that consistency is intentional. If the upper portion is ever occupied by a separate family or rented out, they get the same quality of living space as the ground floor family, not a compressed version of it. A full sofa arrangement, dining setup, and media wall all fit in this space without compromise. This lounge is what makes the first floor feel like a complete home rather than an added floor.
First Floor Kitchen & Lobby – Five Marla House Map
Kitchen: 6′-6″ × 12′-0″ | Lobby: 5′-3″ Wide
A separate 12-foot kitchen on the first floor is what fully completes the independent living arrangement in this five marla house map layout. Most first-floor plans in this size category either skip the kitchen entirely or compress it into something barely functional. Here the kitchen carries the same 6′-6″ × 12′-0″ dimensions as the ground floor — same counter length, same cabinet space, same movement room. The 5′-3″ wide lobby between the lounge and kitchen keeps circulation smooth and prevents the floor from feeling congested around its busiest zone.
Back Master Bedroom with Attached Bath – 5 Marla House Naksha
Bedroom: 11′-0″ × 17′-0″ | Bath: 5′-0″ × 7′-0″
Sitting directly above the ground floor master bedroom, this room in the 5 marla house naksha carries the same 17-foot length — which means the same luxury proportions repeat on both floors rather than scaling down on the upper level as most plans do. The back-facing position keeps this room away from street noise entirely, and the rear window opens toward the back lawn below, providing natural ventilation and a clear view. The 5′-0″ × 7′-0″ attached bath fits a proper shower, vanity, and commode at full dimensions — not a squeezed version sized around whatever space was left after the bedroom took its share.
5 Marla House Map – First Floor Complete Size Table
| Area / Room | Dimensions (Size) |
|---|---|
| Front Terrace | Open Space (Over Porch) |
| Front Bed Room | 12′-0″ × 12′-0″ |
| Front Bed Dressing | 4′-0″ × 4′-6″ |
| Front Bed Bath | 4′-0″ × 7′-0″ |
| TV Lounge | 20′-0″ × 13′-0″ |
| Kitchen | 6′-6″ × 12′-0″ |
| Lobby | 5′-3″ Wide |
| Back Master Bed Room | 11′-0″ × 17′-0″ |
| Back Master Bath | 5′-0″ × 7′-0″ |
25 * 50 Front Elevation – Materials, Textures & Lighting Guide
A floor plan tells you how a house works. The front elevation tells you what it means — and on this 25 * 50 house front design, that meaning is modern, layered, and genuinely premium without crossing into the kind of overdone finish that dates badly after a few years. Every material on this facade has a specific job, every lighting fixture has a specific target, and nothing is there just to fill a surface. Here is a complete breakdown of every element on this elevation.
Color Palette – 25 * 50 Front Elevation Theme
Charcoal Black | Off-White | Earthy Brown & Beige
The overall palette on this 25 * 50 front elevation runs on three tones working together rather than competing. Charcoal black and dark grey give the structure its bold, grounded presence. Off-white and cream geometric frames sit against those dark tones to create definition and visual contrast. Earthy browns and beiges from the wood and marble elements bring warmth into what would otherwise be a cold industrial palette — it is this combination that keeps the design feeling premium rather than simply dark.
Premium Materials & Textures – 5 Marla House Designs Exterior
Split-Face Stone | Emperador Marble | Wooden Louvers | CNC Gate | Tempered Glass
The real character of this 5 marla house designs exterior comes from how different textures sit against each other across the same facade. Split-face slate stone cladding runs across the first floor main window zone and along sections of the boundary wall — horizontal, rough-edged grey tiles that catch light differently at every hour and add a rugged, natural depth that smooth plaster cannot replicate.
Emperador brown marble with golden veining covers the main gate pillars, the first-floor balcony planter box, and the rooftop right-side parapet. It is the one genuinely high-gloss element on this facade, and its placement at the gate pillars means it is the first material a visitor actually touches — which is exactly where a premium finish should land.
Vertical wooden louvers on the right side of the first-floor window zone handle two jobs simultaneously — filtering direct sunlight and providing visual privacy without blocking air movement, while adding a warm linear texture that breaks the horizontal dominance of the stone cladding beside them. A slim wooden canopy over the ground floor entrance carries the same material logic downward, tying both floors together.
The main gate is heavy-duty matte black powder-coated iron with a CNC laser-cut geometric pattern in the centre panel and vertical security bars on either side. First-floor glazing uses large powder-coated aluminium-framed glass panels with a frameless tempered glass balcony railing, keeping the upper front completely open and unobstructed.
Exterior Lighting Design – 25×50 House Plan 3D Night Elevation
Cove Lights | Up-Down Wall Cones | Spike Lights | Post-Top Lantern
This is where the 25×50 house plan 3d elevation changes character entirely. Concealed warm-yellow LED strip lights (3000K) run inside the first-floor off-white rectangular frame and along the ground floor porch ceiling — washing surrounding surfaces in a soft continuous glow that makes the geometric frame structure readable at night without harsh point sources.
Black up-down wall cone fixtures sit on the marble gate pillars and along the left-side boundary wall. Their grazing beam angle pulls out every horizontal ridge and rough edge of the split-face stone at night, making the texture look almost three-dimensional from the street. Spike lights inside the boundary hedge planters and balcony planter boxes illuminate the greenery from below, adding a natural living element to the night facade. At the far left corner, a tall black classic post-top lantern gives the entire street frontage a finished, considered look.
Front Elevation – Materials & Lighting Specifications Table
| Feature / Area | Material Used | Texture / Finish | Lighting Type |
|---|---|---|---|
| Main Frames | Concrete Plaster & Paint | Matte Charcoal Black & Off-White | Warm LED Cove Lighting |
| Feature Walls | Split-Face Slate Stone | Horizontal, Rough & Natural | Up-Down Wall Spotlights |
| Pillars & Planters | Emperador Marble | Polished, High-Gloss Veined | Warm Accents |
| Window Grilles / Louvers | Natural Teak Wood / WPC | Linear Matte Wood Grain | Ambient Glow |
| Main Gate | Heavy Duty Iron | Powder-Coated Matte Black | CNC Laser-Cut Pattern |
| Balcony Railing | Tempered Glass & Steel | Transparent & Sleek | In-ground Planter Lights |

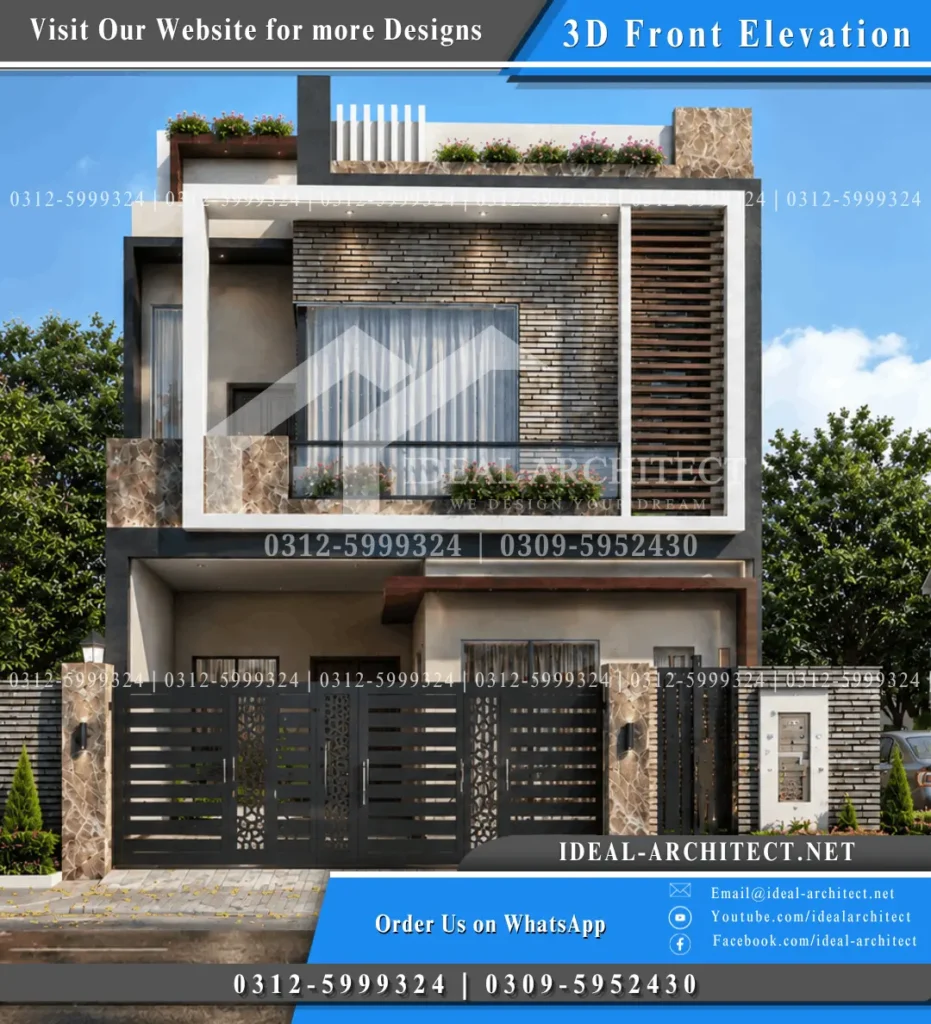

Five Marla House Design – Daytime Elevation & Natural Material Beauty
Nighttime lighting shows you what a house can look like at its most dramatic. Daytime sunlight shows you what it actually is — and on this five marla house design, what it actually is holds up just as well under natural light as it does under a carefully planned lighting scheme. When direct sunlight hits these materials across a 25-foot front, each texture responds differently, and that layered response is exactly what makes this elevation work on a plot this size.
Why Texture Layering Works – Home Design 5 Marla
3D Depth | Monotony Break | Visual Width
This is the core challenge of any home design 5 marla project — a 25-foot front is genuinely narrow, and if you finish it in a single plaster and paint, the result looks flat, boxy, and smaller than it already is. The solution used here is not to add more elements but to layer contrasting textures that create visual depth across that 25-foot width. Rough split-face stone, polished marble, linear wooden louvers, and smooth matte concrete sitting side by side give a viewer’s eye multiple surfaces to land on as it moves across the front — each layer pulls the eye slightly differently and makes the front feel wider and deeper than its actual dimensions.
Stone Cladding & Natural Shadow Play – Five Marla House Design
Material: Split-Face Slate Stone | Finish: Horizontal Rough & Natural
In daylight, horizontal slate stone tiles do something no paint or smooth plaster can replicate. As sunlight moves across the facade through the day, each thin tile edge casts its own small shadow onto the tile below it — a continuous natural shadow pattern that shifts slowly from morning to evening. This shadow play is what gives the stone its premium, rustic depth in photographs and in person. On a five marla house design where the front is already compact, this texture does the visual work of a much larger surface area.
Emperador Marble in Direct Sunlight – Modern 25×50 House Plan
Material: Emperador Brown Marble | Finish: Polished High-Gloss Veined
In direct sunlight, the polished surface of this marble reflects light outward while the golden veins inside the stone become clearly visible from across the driveway. In a modern 25×50 house plan where the gate is the first element a visitor reaches, placing the most reflective, high-gloss material at exactly that point is both a design and a first-impression decision that pays off every single time someone approaches the house.
Wooden Louvers in Daylight – 25 * 50 House Design Warm Contrast
Material: Natural Teak Wood / WPC | Finish: Linear Matte Wood Grain
Charcoal grey, matte black, and off-white concrete are cold tones by nature. In a 25 * 50 house design built primarily on that palette, the wooden louvers carry the entire warmth of the facade during daylight hours. Brown wood grain sitting between charcoal stone and white concrete reads as organic and inviting rather than industrial — it is the element that makes the elevation feel like a home rather than a commercial building.
CNC Gate Shadow Patterns – 5 Marla House Designs Daytime Detail
Material: Heavy Duty Iron | Finish: Powder-Coated Matte Black
During the day, when direct sunlight passes through the laser-cut geometric pattern, it projects those patterns as shadows onto the car porch floor and inner boundary wall. The result is a designed shadow pattern inside the porch that changes angle through the day and gives the entrance zone a detail that most visitors notice even if they cannot immediately explain what they are looking at.
Final Verdict – Home Design 5 Marla Resale & Long-Term Value
Split-face stone, Emperador marble, wooden louvers, and powder-coated metal are all low-maintenance finishes that do not fade, chip, or discolour the way standard exterior paint does over time. In a Pakistani real estate market where resale value is directly tied to first impressions, a home design 5 marla exterior finished at this level holds its value significantly better than a comparable plot with a standard plaster-and-paint front. This is not just a design choice — it is a long-term investment decision.
Daytime Materials Summary Table
| Feature / Area | Material Used | Texture / Finish | Daytime Visual Effect |
|---|---|---|---|
| Main Frames | Concrete Plaster & Paint | Matte Charcoal & Off-White | Clean geometric contrast |
| Feature Walls | Split-Face Slate Stone | Horizontal Rough & Natural | Natural shadow play all day |
| Pillars & Planters | Emperador Marble | Polished High-Gloss Veined | Golden veins visible in sunlight |
| Window Louvers | Natural Teak Wood / WPC | Linear Matte Wood Grain | Warm contrast against cold tones |
| Main Gate | Heavy Duty Iron | Powder-Coated Matte Black | Geometric shadow patterns on porch |
| Balcony Railing | Tempered Glass & Steel | Transparent & Sleek | Unobstructed front view |
Frequently Asked Questions
1. What is the size of a 5 marla house plan in Pakistan?
A 5 marla plot in Pakistan is typically 25×45 feet in some societies and 25×50 feet in others, depending on the housing scheme. This particular 5 marla house plan is built on a 25×50 foot footprint, giving a total plot area of 1,250 square feet — enough for a complete double-story home with independent living units on each floor.
2. How many bedrooms can fit in a 25×50 house plan?
A well-designed 25×50 house plan can comfortably fit 1 to 2 bedrooms on the ground floor and 2 bedrooms on the first floor, giving a total of 3 to 4 bedrooms across both floors. This particular layout includes a ground floor master bedroom and drawing room, plus two bedrooms on the first floor — each with attached baths and dressing areas.
3. Can a 25×50 house plan work as two independent units?
Yes — and this is one of the strongest features of this specific layout. The first floor includes its own kitchen, lounge, two bedrooms, and separate baths, while the front staircase gives direct access from the exterior gate. This makes the 25 x 50 house design fully functional as two independent homes on a single plot — ideal for joint families or rental income.
4. What materials are best for a 25×50 front elevation in Pakistan?
For a modern 25 * 50 front elevation, the most effective material combination currently is split-face slate stone for feature walls, Emperador marble for pillars and planters, natural wood or WPC louvers for window zones, and smooth matte concrete plaster for main wall areas. This four-material approach creates genuine depth across a narrow 25-foot front without overcomplicating the finish.
5. Is a 5 marla house plan suitable for a joint family?
Yes — when designed with independent floor planning like this one. The ground floor operates as one complete home and the first floor as another, sharing only the structural shell. A five marla house plan built on this principle handles a joint family of 8 to 10 people comfortably without shared kitchens or living areas creating daily friction.
6. How does nighttime lighting improve a 5 marla house front design?
Lighting transforms how exterior materials read after dark. On a 25×50 house plan 3d elevation like this one, warm LED cove lights make geometric frames glow softly, up-down wall sconces pull out the texture of split-face stone, spike lights bring greenery to life, and a post-top lantern gives the street frontage a finished, premium look. Done correctly, nighttime lighting makes a 5 marla house designs exterior look significantly more valuable than it cost to build.
7. What is the difference between a 5 marla and 7 marla house plan?
A 5 marla house plan typically sits on a 25×45 or 25×50 foot plot while a 7 marla plot is wider — usually around 25×60 or 30×50 feet depending on the society. The practical difference shows up in room widths and the size of the lounge and porch. A well-designed 5 marla house layout plan can deliver nearly the same room count as a 7 marla layout by using floor space more efficiently, though the larger plot will always have more breathing room between rooms.
8. How much does it cost to build a 5 marla house in Pakistan in 2025?
Construction costs for a 5 marla house plan in Pakistan typically range from PKR 80 lakh to PKR 1.6 crore for a complete double-story structure, depending on finish quality, city, and material choices. Grey structure alone generally comes in at the lower end of that range. An elevation finished with premium materials like stone cladding, marble pillars, and wooden louvers as shown in this modern 25×50 house plan will add to the finish cost but significantly increases the resale value of the property.
