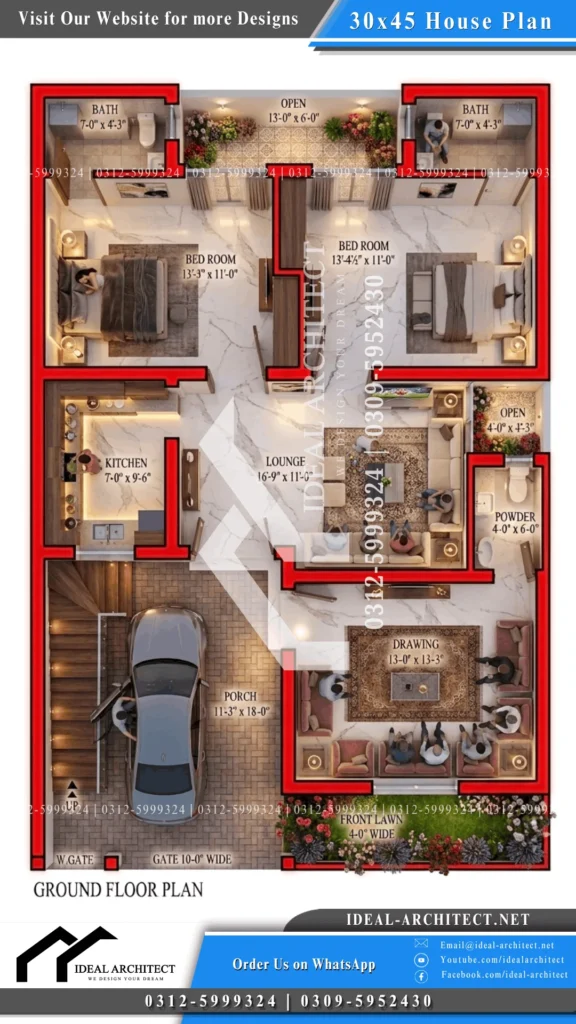

30×45 House Plan | 5 Marla House Plan – Complete Layout & Double Story Design

A 30×45 house plan gives you 1,350 square feet of plot area — generous enough for a genuinely comfortable home but compact enough that every room placement decision carries real consequences. Most 5 marla house plan layouts at this size either compress the bedroom zone to make the living areas feel larger or sacrifice the guest zone entirely to hit a bedroom count. This ground floor does neither. The drawing room gets the size it needs to actually receive guests properly, the TV lounge gets the length it needs to serve as a real family hub, and both rear bedrooms carry equal proportions with attached facilities — all within the same 30×45 footprint without anything feeling squeezed in as an afterthought.

Car Porch & Main Entrance – 30 * 45 House Plan Ground Floor

Main Gate: 10′-0″ Wide | Wicket Gate: Included | Car Porch: 11′-3″ × 18′-0″

The 10′-0″ wide main gate handles large vehicles comfortably, and the separate pedestrian wicket gate beside it means family members on foot do not need to swing the full gate open for a routine entry — a detail in this 30 * 45 house plan that adds up considerably in daily convenience and security. Inside the gate, the car porch at 11′-3″ × 18′-0″ is one of the more generous proportions at this plot size — the 18-foot length accommodates a full-sized SUV with room remaining, and the 11′-3″ width leaves comfortable door-opening clearance on both sides of a parked vehicle. The independent staircase on the left side of the porch leads directly to the upper floor from outside — the placement in this 30 x 45 house plan drawing that makes the first floor a genuinely independent unit from day one rather than just theoretically rentable later.

Front Lawn – 30 by 45 House Plan Street Appeal

Size: 4′-0″ Wide

The 4′-0″ front lawn running along the porch face is a deliberate ventilation and daylight channel in this 30 by 45 house plan — keeping the drawing room window facing open air rather than the back of the gate structure. It provides the drawing room with natural light and cross-ventilation that keep the room usable during the day without artificial lighting and gives the front elevation a green baseline at street level.

Drawing Room – 30 x 45 House Plan Guest Zone

Size: 13′-0″ × 13′-3″

The drawing room at 13′-0″ × 13′-3″ enters directly from the car porch through its own dedicated door — completely separated from the main interior entrance. The near-square proportion is one of the most furniture-friendly configurations in this 30 x 45 house plan; a full L-shaped sofa set, a centre table, and a side credenza all fit naturally without the room feeling arranged around its constraints. Guests are received and hosted without the interior of the house ever coming into view behind the host — the arrangement that most Pakistani families actually need but most compact layouts fail to deliver.

TV Lounge & Kitchen – Five Marla House Plan Central Hub

TV Lounge: 16′-9″ × 11′-0″ | Powder Room: 4′-0″ × 6′-0″ | Kitchen: 7′-0″ × 9′-6″

The TV lounge at 16′-9″ × 11′-0″ is the room the entire ground floor organises itself around — at nearly 17 feet of length it handles a full sofa arrangement, a dedicated media wall, and clear walking paths to the kitchen and bedroom corridor without any of those zones competing for the same floor area. A 4′-0″ × 6′-0″ powder room with a 4′-0″ × 4′-3″ ventilation open area beside it serves the lounge zone without requiring anyone to enter the private bedroom section. The kitchen at 7′-0″ × 9′-6″ sits to the left of the lounge — the 9′-6″ depth gives a proper working counter layout with room for upper and lower cabinets along the full usable length. In a five marla house plan at this scale, a kitchen this size handled correctly is considerably more functional than a larger one with wasted floor area in the middle.

Two Master Bedrooms – 5 Marla House Plan Double Story Bedroom Layout

Bedroom 1 (Left): 13′-3″ × 11′-0″ | Attached Bath: 7′-0″ × 4′-3″
Bedroom 2 (Right): 13′-4½” × 11′-0″ | Attached Bath: 7′-0″ × 4′-3″

Both rear bedrooms in this 5 marla house plan double story layout carry nearly identical dimensions — the half-inch difference between them is a structural dimension rather than a design decision, meaning both rooms are functionally equal in every practical sense. Each carries a 7′-0″ × 4′-3″ attached bath at full working dimensions. Wardrobe space in both rooms is managed through built-in wall recesses rather than freestanding furniture, which keeps both rooms feeling open at their actual size rather than crowded by the storage they need to function.

Back Open Area – 5 Marla House Layout Plan Ventilation

Size: 13′-0″ × 6′-0″

The 13′-0″ × 6′-0″ open area at the rear of this 5 marla house layout plan is a deliberately sized cross-ventilation and daylight channel — not leftover space. Six feet of open width supplies both rear bedrooms and their attached baths with genuine airflow from behind, keeps the back wall dry through Pakistan’s monsoon season, and works as a functional laundry zone without taking any floor space away from the interior rooms.

Ground Floor – Complete Room Size Table

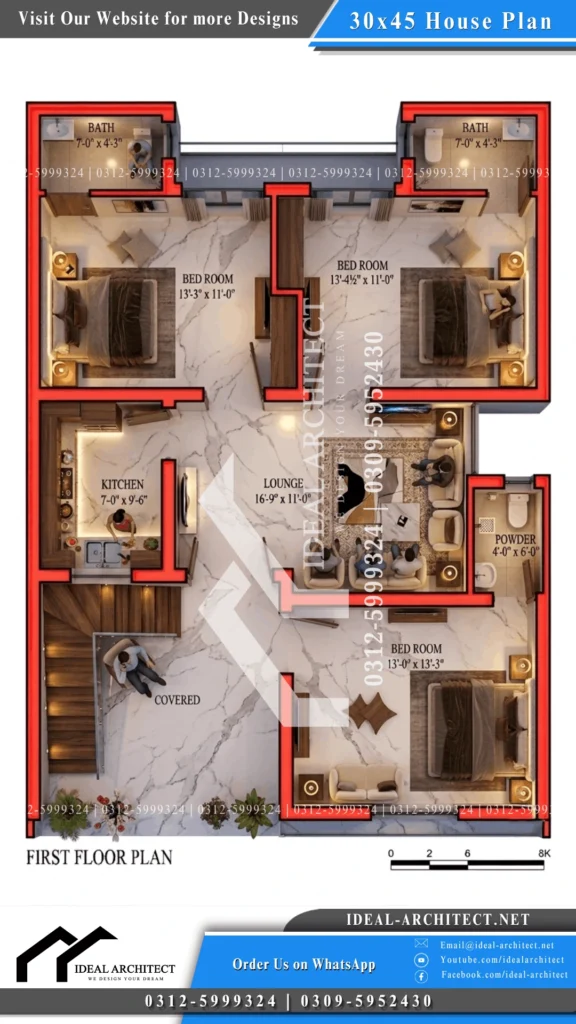

5 Marla House Map | 5 Marla Ghar Ka Naksha – First Floor Layout

When a ground floor works well, the first floor has to earn its place rather than just repeat what is already there. In a 5 marla house map, the first floor is where the real value of a double story decision becomes apparent — and in this layout, that value is a complete, genuinely independent second home on the same 30×45 structural footprint. Three bedrooms, a full kitchen, a central lounge, and its own exterior access. The upper family or tenant never needs to pass through the ground floor for anything.

Independent Staircase & Covered Area – 5 Marla House Naksha Upper Access

Staircase: Independent DN/UP System | Covered Area: Over Car Porch

The staircase arrives on this floor from the left side with a DN direction back down and an UP route continuing toward the mumty above. In this 5 marla house naksha, that vertical separation is what makes the first floor genuinely independent rather than just accessible separately. Anyone on the upper floor enters from the exterior gate, comes straight up, and lives completely within this floor without any intersection with the ground floor daily routine. Directly above the car porch, a covered area gives the first floor front a strong architectural presence from the street — a shaded lobby space that works as a balcony sitting area or as the visual element that gives the double-story elevation its covered projection and shadow depth.

Front Master Bedroom – 5 Marla Ghar Ka Naksha Front Zone

Size: 13′-0″ × 13′-3″

Where the ground floor placed a drawing room in this front zone, the first floor in this 5 marla ghar ka naksha replaces it with a full master bedroom at 13′-0″ × 13′-3″ — the same square proportion that made the drawing room easy to furnish now makes this bedroom equally easy to arrange. A king bed, two side tables, a dresser, and a small seating area all fit without the room feeling tight. Its window opens directly to the front of the building — morning light, natural cross-ventilation from the street side, and a direct connection to the covered area below.

Central TV Lounge – Five Marla House Map First Floor Hub

Size: 16′-9″ × 11′-0″

The same 16′-9″ × 11′-0″ lounge from the ground floor repeats on this level — not a compressed version renamed as a family room to justify smaller dimensions, but the same footprint carrying the same capacity. In a five marla house map designed for genuine dual occupancy, this consistency is what makes the first floor family’s daily living experience equal to the ground floor family’s rather than a noticeably lesser version of it. All three bedrooms and the kitchen connect directly through or immediately off this lounge.

First Floor Kitchen – 5 Marla House Naqsha Independent Unit

Size: 7′-0″ × 9′-6″

The kitchen on this floor sits directly above the ground floor kitchen in this 5 marla house naqsha — sharing the same plumbing stack through the structure. That vertical alignment keeps all supply lines and drainage running straight without horizontal runs through walls or floors, which eliminates the seepage risk that misaligned wet areas create over time. At 7′-0″ × 9′-6″, the kitchen carries the same counter depth and layout capacity as the one below — a fully functional fitted kitchen that makes this floor genuinely self-contained.

Powder Room – 5 Marla Ka Naksha Common Bathroom

Size: 4′-0″ × 6′-0″

The powder room beside the kitchen serves the lounge and general living zone on this floor without requiring anyone to enter a private bedroom to reach a bathroom. In a 5 marla ka naksha designed for independent family occupancy on both levels, a common bathroom within the lounge zone is the detail that makes everyday hosting and general use on the first floor function as well as a standalone apartment.

Two Rear Bedrooms – 5 Marla House Map Bahria Town Private Zone

Bedroom 2 (Left): 13′-3″ × 11′-0″ | Bath: 7′-0″ × 4′-3″
Bedroom 3 (Right): 13′-4½” × 11′-0″ | Bath: 7′-0″ × 4′-3″

Both rear bedrooms on this floor match their counterparts on the ground floor exactly — same dimensions, same attached bath proportions, same built-in wardrobe recesses in the walls. In a 5 marla house map bahria town or DHA layout where both floors need to carry equal residential quality, this repetition is the structural and planning logic that keeps construction costs predictable and both floors genuinely equal as places to live. Both attached baths ventilate through the rear open area directly.

Rear Open Area – 5 Marla House Design Map Ventilation

Size: 13′-0″ × 6′-0″ (Connected to Ground Floor Open Area)

The rear open area on this floor connects directly down to the ground floor open courtyard below — a continuous vertical ventilation shaft that keeps the rear zone of both floors supplied with fresh air and natural light from the back. This continuity in this 5 marla house design map prevents the back bedrooms and baths on the first floor from ever feeling like they are at the back of a sealed building.

First Floor – Complete Room Size Table

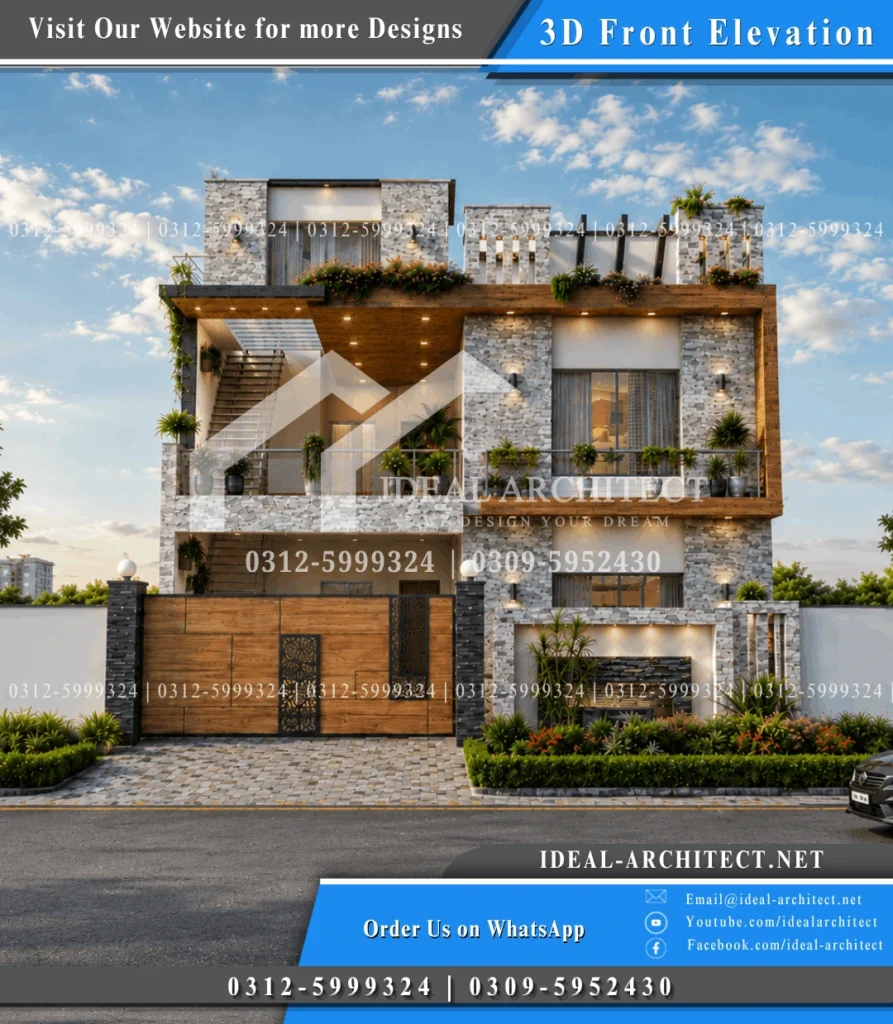

5 Marla House Designs | 5 Marla Modern House Design – Front Elevation & Materials

What makes a 5 marla house designs exterior genuinely stand out in a Pakistani housing society is rarely a single dramatic element — it is the combination of contrasting materials working together across a narrow front in a way that creates visual depth without overcomplicating the composition. This 5 marla modern house design delivers exactly that through a bold framing architectural approach that pairs rugged natural stone textures with warm wood tones, open concrete structure, and sharp dark metal accents — each material doing a specific job on the facade rather than filling surface area at random.

Grand Entrance Gate & Driveway – Five Marla House Design Street Level

Sliding Gate: Wood-Textured Planks + Laser-Cut Metal Panel | Driveway: Multi-Toned Grey Cobblestones

The entrance gate on this five marla house design combines horizontal wood-textured planks with an artistic laser-cut black metal geometry panel in the centre — a combination that reads as contemporary and considered rather than simply secure. The driveway ramp and porch floor use multi-toned grey interlocking cobblestones — durable, anti-skid, heavy-traffic resistant, and visually consistent with the grey stone tones running through the rest of this home design 5 marla exterior. A green planter belt along the right boundary wall carries low-lying shrubs and decorative palms, softening the stone framework at street level with a natural, living baseline.

Wooden Box Frame & First Floor – 5 Marla Double Story House Design

Warm Wood Box Frame | Ash-Grey Split-Face Stone | Open Floating Staircase

The defining architectural decision on this 5 marla double story house design first floor is the massive continuous rectangular border clad in warm wood tones that runs across the full width of the first floor and extends vertically down the right side. This structural frame groups the first-floor balcony and windows into a single cohesive visual element rather than individual windows sitting in isolation across the facade.

The ash-grey split-face fieldstone tiles wrapping around the window frames, main pillars, and top floor facade are the material that gives this 5 marla double story house design its rugged, premium character. Each tile surface is rough and three-dimensional, catching light at different angles through the day and casting small shadows across the wall face. The contrast between the cool grey stone and the warm wood frame running beside it is the visual tension that keeps the eye moving across the facade.

On the left side, an exposed floating concrete staircase links the ground porch up to the top floor with minimal black safety railings along the outer edge — completely open to the air, keeping the left wing of this facade transparent and spacious.

Balcony Planters & Top Floor – 5 Marla House Design Single Story to Double Story

Integrated Planter Boxes | Step-Back Rooftop Terrace | Stone Parapet Walls

Built-in concrete planter beds run along the balcony edges and stair landing, packed with overflowing green vines and shrubs that bring natural movement and colour into the hard material composition. The top floor is set back to accommodate an open-air rooftop terrace bounded by minimalist stone parapet walls with top-level pergolas on the right side — the architectural shadow play those pergolas create across the roofline gives the elevation dynamic depth at the top that most flat-roofed residential buildings in Pakistan completely lack.

Material & Budget Guide – 5 Marla Modern House Design Pakistan

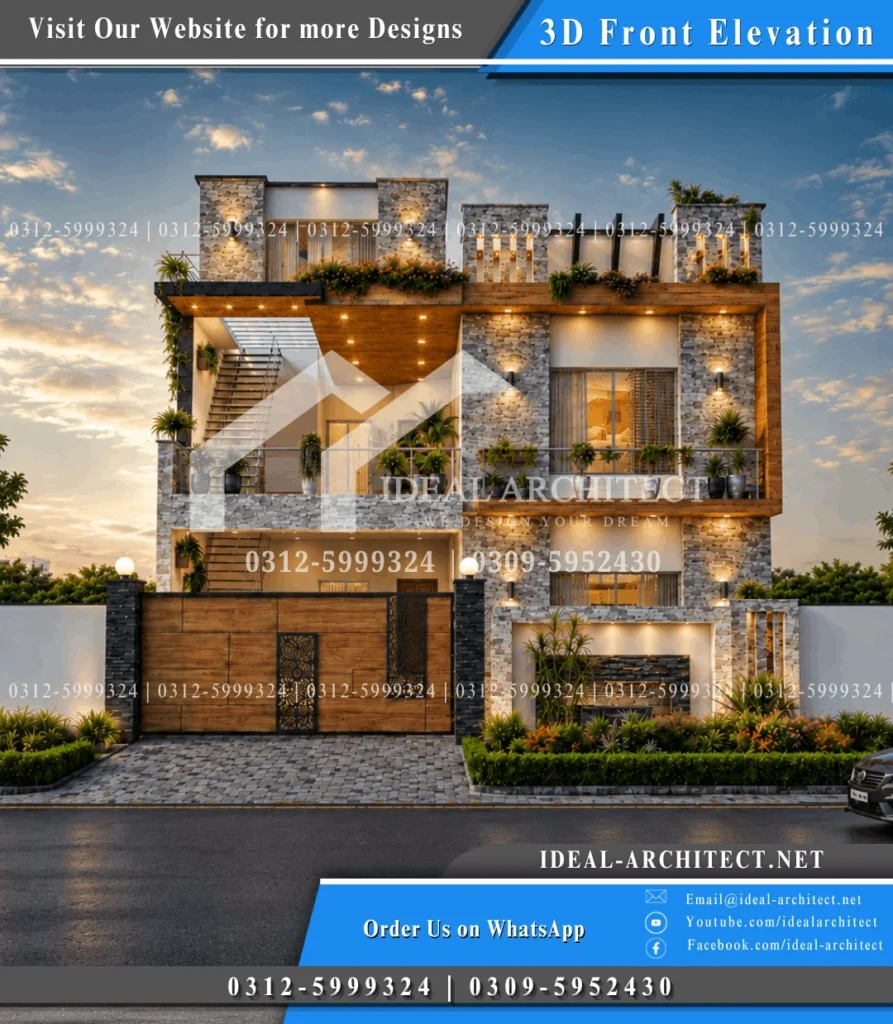

30×45 House Front Design | 5 Marla House Elevation – Night View & 3D Design

The version of this 30×45 house front design that most people in the neighbourhood actually see most often is not the daytime version — it is the one that exists after the sun goes down. An exterior that looks well-finished in daylight but unremarkable at night has missed half of its architectural opportunity. This 5 marla house elevation was planned with lighting as part of the architecture from the beginning — and the difference between that approach and simply fitting lights afterward is immediately visible from the street the moment the lights come on.

Lighting Blueprint – 30×45 House Plan 3D Night Strategy

Warm COB Downlights | Up-Down Wall Cones | Globe Gate Lights | Linear LED Strips

The evening look of this 30×45 house design does not rely on random floodlighting that washes the facade in uniform brightness and flattens every texture. Instead it uses deliberate architectural fixtures, each positioned to target a specific material and reveal a specific quality that flat daylight cannot.

Warm COB LED concealed spotlights embedded directly into the wooden false ceilings under the balconies, main porch, and top-floor mumty overhangs cast a continuous warm golden downwash across the structural slabs — making the slab edges appear to float against the dark sky. In a 30×45 house plan 3d elevation where the building’s layered geometry is one of its strongest features, these ceiling fixtures are what make that layering visible and readable from the street after dark.

Exterior up-down wall cone fixtures mounted symmetrically on the stone-clad columns project a V-shaped light path both upward and downward along the textured walls — hitting the uneven ridges of the grey split-face stone at a grazing angle from both directions simultaneously. This creates deep micro-shadows across every surface variation in the stone, making the cladding look significantly more three-dimensional and premium at night than under flat ambient light. Classic white frosted globe lights on top of the black entry gate pillars throw soft diffused light over the driveway. Low-voltage linear LED strips hidden beneath the custom planter box illuminate the accent stone and surrounding shrubs from below.

Why This Lighting Works – 3D 5 Marla House Design Night Benefits

Texture Magnification | Staircase Safety | Visual Warmth at 3000K

Three specific things make this lighting strategy work on a 3d 5 marla house design exterior better than a simple floodlit approach. The grazing angle of the up-down wall cones on the stone surface creates micro-shadow patterns that make the stone genuinely tactile and three-dimensional at night. The recessed COB spotlights directly above each staircase flight resolve the safety requirement created by an exposed open staircase — every landing and walking surface is clearly lit without dark corners at any level. The 3000K warm white colour temperature of every fixture creates a striking contrast against the cool deep blue tones of the evening sky — the combination that gives a house a resort-like, welcoming quality from the street after dark.

Budget Material Guide – 3D Home Design 5 Marla Pakistan

Local Stone | HPL Panels | MS Steel Gate | Local LED Brands

The construction cost of this 3d home design 5 marla exterior is considerably more achievable in the Pakistani market than the render suggests. Locally sourced Taxila split-face stone, Sargodha grey khakha stones, or local slate tiles deliver the exact same multi-toned grey rugged texture at a fraction of imported stone costs. Exterior-grade HPL sheets or high-quality PVC ceiling panels with matte wood-grain texture replicate the warm wood ceiling framing completely weatherproof and maintenance-free. MS mild steel box channels and pipes finished in premium matte black anti-rust paint with WPC louver inserts replicate the grand sliding gate locally. Local Pakistani brands including Opel and Tronic deliver the same 3000K warm white waterproof outdoor rating as imported Italian fixtures at a fraction of the cost.

Long-Term Value – 5 Marla House Front Design Pictures & Resale Premium

A 5 marla house front design pictures-worthy exterior is not just a visual decision — it is a financial one. In a Pakistani housing society where most 5 marla plots carry structurally similar homes, the exterior finish quality is one of the very few variables that directly and consistently affects resale value. Split-face local stone, weatherproof HPL ceilings, powder-coated steel gates, and properly specified outdoor LED fixtures all have long service lives in Pakistan’s climate — and a 5 marla house plan 3d exterior finished at this level holds a resale premium above comparable standard-finish plots that consistently exceeds the additional finish cost over any reasonable ownership period.

Local Material Execution Summary – 5 Marla House Elevation Pakistan

Frequently Asked Questions

1. What is the plot size for a 30×45 house plan in Pakistan?
A 30×45 house plan covers 1,350 square feet of plot area — roughly 5 marla depending on the housing society’s measurement standard. This particular layout is built on a 30-foot wide by 45-foot deep footprint, which gives enough room for a complete double story home with independent living units on both floors and a generous car porch, drawing room, and rear open area all within the same plan.

2. How many bedrooms fit in a 30×45 house plan double story?
This 30×45 house plan double story delivers 5 bedrooms total — 2 master bedrooms on the ground floor and 3 bedrooms on the first floor. Every bedroom across both floors carries an attached bath and built-in wardrobe space, and both floors function as completely independent living units with separate kitchen, lounge, and exterior access.

3. Can a 5 marla house plan work as two independent rental units?
Yes — and this layout was specifically designed with that in mind. The first floor has its own kitchen at 7′-0″ × 9′-6″, a full lounge at 16′-9″ × 11′-0″, three bedrooms with attached baths, a powder room, and direct exterior access via the independent front staircase. The ground floor and first floor share nothing except the structural shell — two fully self-contained homes on one 5 marla plot.

4. What is the benefit of a 5 marla house map with an independent staircase?
An independent external staircase in a 5 marla house map keeps the upper floor completely private from the ground floor. The upper occupant uses the exterior gate and goes directly up without passing through the ground floor living areas at any point. This is essential for joint family privacy and makes the upper portion genuinely rentable rather than just technically accessible from a separate staircase inside the house.

5. What makes a 5 marla modern house design stand out on a housing society street?
A 5 marla modern house design stands out through the layering of contrasting materials rather than a single dramatic element. This design uses ash-grey split-face stone on columns and walls, warm wood HPL panels on the box frame and balcony ceilings, an open floating concrete staircase on the left, and biophilic planters with cascading greenery at every level. Each material responds differently to light through the day, keeping the facade visually interesting from morning through evening and after dark.

6. What is a 5 marla ghar ka naksha and how is it different from a house plan?
A 5 marla ghar ka naksha and a 5 marla house plan refer to the same thing — the floor plan or layout drawing of a home on a 5 marla plot. “Naksha” is the Urdu term for “map” or “plan.” The naksha covers room dimensions, door and window placements, staircase positions, and open area allocations — everything a builder needs to construct the house from the approved design.

7. How does nighttime lighting improve a 30×45 house front design?
A 30×45 house front design at night is transformed by architectural lighting that targets specific surfaces rather than flooding the facade with uniform light. COB downlights in the balcony soffits define each floor level from the street. Up-down wall sconces on the stone columns graze the texture and reveal depth. Globe lights on gate pillars provide welcoming entry illumination. Linear LED strips under planter boxes illuminate greenery from below. At 3000K warm white, the combined effect gives the house a resort-like luxury quality after dark that its daytime appearance alone cannot deliver.

8. What local materials can be used for a 5 marla house elevation in Pakistan?
For a premium 5 marla house elevation in Pakistan without imported material costs, locally quarried Sargodha or Taxila grey khakha split-face stone tiles deliver the same rugged grey texture as imported quartzite at a fraction of the cost. Exterior-grade HPL sheets or PVC ceiling panels replicate warm wood soffit ceilings weatherproof and maintenance-free. Standard MS mild steel box pipes with matte black paint and WPC louver inserts fabricate the gate locally. Local SMD and COB LED brands from Opel or Tronic cover the full lighting specification at an economical price point.

9. Is a 5 marla house plan suitable for a joint family in Pakistan?
Yes — when both floors are designed as genuinely independent units as in this layout. The ground floor provides a complete home with a drawing room, TV lounge, kitchen, powder room, and two master bedrooms with attached baths. The first floor provides an equally complete home with three bedrooms, a full kitchen, a central lounge, and a powder room. A joint family of 8 to 12 people can occupy both floors with full privacy and no shared daily spaces.

10. What is the difference between a 30×45 and 30×60 house plan?
A 30×45 house plan covers 1,350 square feet of plot area while a 30×60 house plan covers 1,800 square feet — a difference of 450 square feet or roughly 15 feet of additional plot depth. In practical terms, a 30×60 layout can accommodate an additional bedroom or a larger rear open area on each floor. A well-designed 30×45 house plan like this one delivers most of the same room count and functionality through smarter space distribution rather than simply relying on the larger footprint.
