10 Marla House Design Pakistan — 35×70 House Plan, Naksha & Modern Front Elevation

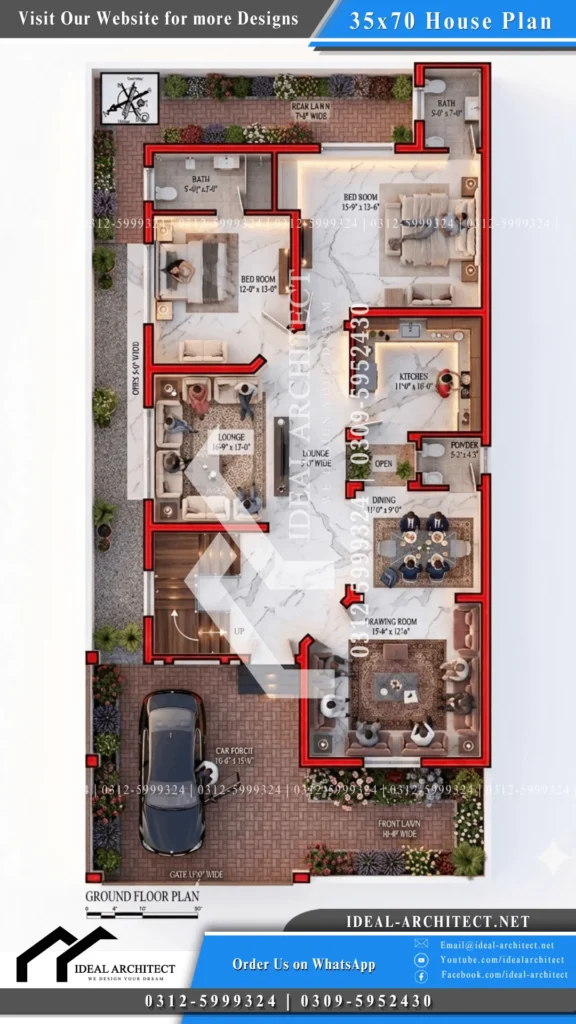

35×70 House Plan Pakistan — Layout and Space Planning

A 35×70 plot gives a Pakistani family one of the most workable residential footprints available in modern housing societies. The total area of 2,450 square feet is enough to fit every essential space a household needs — formal guest zones, a wide family lounge, a functional kitchen, private bedrooms and covered parking — without forcing any room into an awkward or compromised shape. This 35×70 house plan Pakistan is designed around that principle: every square foot working, nothing wasted.

The layout opens from a 15-foot wide main gate. To the left sits an 18′-6″ × 18′-0″ car porch that comfortably fits two vehicles side by side with clear room for passengers to move around. To the right, a 10-foot wide front lawn runs across the full facade, giving the property an immediate green presence from the street and acting as a natural sound buffer from road traffic. Both of these front elements — the porch and the lawn — are part of a deliberate entry strategy in this 35 70 house plan that separates guest and family circulation from the very first step inside.

From the porch, two entry options branch off in different directions. The first leads guests directly into the 15′-0″ × 12′-6″ drawing room at the front right corner — a formal space that operates completely independently from the family’s private areas. Guests can be received here, hosted and seen out without ever entering the central lounge or passing the bedrooms. The second path takes residents through the main entrance door into a transitional lobby, from where the central lounge, kitchen and rear bedrooms are all accessible.

35×70 Plot House Design — Lounge, Dining and Kitchen Layout

The 16′-9″ × 13′-0″ TV lounge sits at the center-left of this house design 35×70 Pakistan, functioning as the social core of the home. Its width allows for a full multi-seat sofa arrangement with a media wall on one side and clear floor space on the other. A 5-foot wide side open courtyard runs along the left boundary and opens directly into the lounge through wide windows, flooding the room with natural daylight throughout the day and creating continuous cross-ventilation across the central living area.

The 11′-0″ × 9′-0″ dining room sits to the right of the central axis, positioned immediately behind the drawing room and directly adjacent to the kitchen — minimizing the distance between food preparation and the dining table. An internal open-to-sky air shaft on the right side of the plan vents the kitchen, dining and powder room independently from the main living spaces, keeping cooking heat and odors from reaching the lounge.

The 11′-0″ × 10′-0″ kitchen uses an L-shaped counter layout that places the sink, prep area and cooktop in an efficient triangle configuration. The sink sits along the right-hand wall directly below a window opening into the side air shaft, ensuring continuous ventilation during cooking. A 5′-3″ × 4′-3″ powder room tucked off the dining corridor gives guests access to a bathroom without directing them into the private bedroom areas.

35×70 House Design Pakistan — Bedrooms and Natural Ventilation

The rear of this 35×70 house design Pakistan is reserved entirely for private family use. Two bedrooms sit at the back corners of the plot, separated from the front guest zones by the full depth of the lounge and kitchen.

The left bedroom at 12′-0″ × 13′-0″ receives natural light and ventilation from the 5-foot wide side open courtyard on its left wall. Its attached bathroom at 8′-4½” × 5′-0″ has a high-level window opening into the same side passage for steam extraction. The master bedroom at 15′-9″ × 13′-6″ is the largest room on this level — wide enough to accommodate a king-size bed, lounge seating and a full wardrobe setup with clear floor space remaining. Its windows look directly onto a 7-foot wide rear lawn, and its attached bathroom at 5′-0″ × 7′-0″ vents to the same rear open area.

The independent staircase sits at the front-left corner of the plan, accessible from the entrance lobby without crossing into the lounge or bedrooms. This placement means a future upper floor in this 35×70 house plan Pakistan can be used as a completely independent unit — its own entry, its own circulation, no interference with the level below.

Natural ventilation in this 35×70 plot house design runs on a clear logic: the 5-foot side courtyard supplies the left side of the house, the internal air shaft ventilates the right service zone, and the 7-foot rear lawn provides deep cross-ventilation through the master bedroom and both rear bathrooms. No room in this layout depends on a fan alone — every space has a real exterior opening.

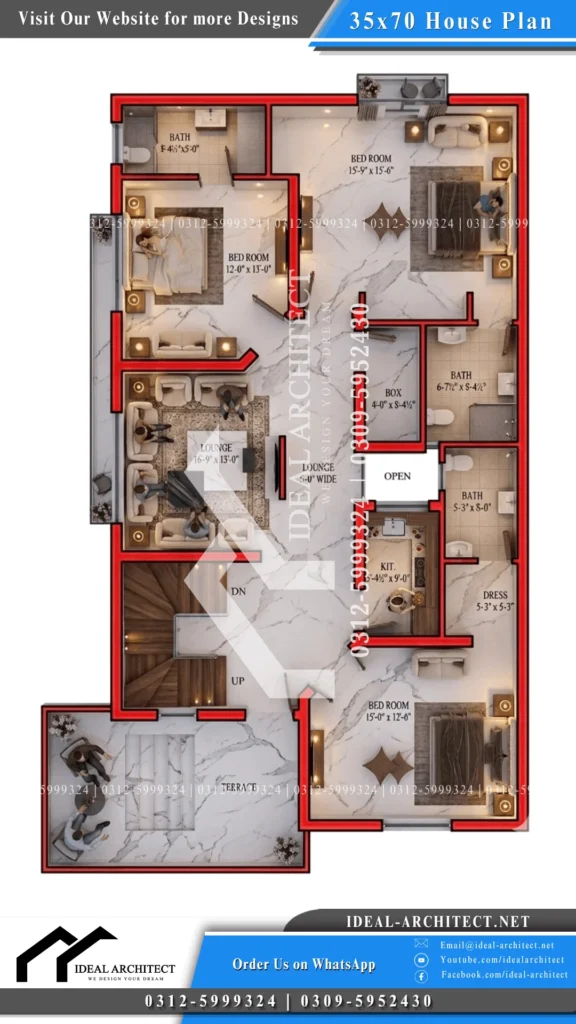

10 Marla House Plan Pakistan — Layout, Map and Independent Living

Planning a double storey home in Pakistan means the upper floor carries just as much responsibility as the level below — it needs to function completely on its own, serve a family’s daily needs independently, and remain structurally and financially practical to build. This 10 marla house plan Pakistan achieves all three. The upper floor is a fully self-contained residential unit with three bedrooms, a dedicated kitchen, a wide family lounge and a private front terrace — all sitting cleanly within the same 35×70 footprint.

Arriving at the upper landing via the independent front staircase, the layout opens directly into the central family lounge. The staircase continues upward to the rooftop from the same landing point, meaning movement between all levels in this ten marla house map Pakistan never crosses into private bedroom areas. A dedicated entrance door at the landing allows the entire upper floor to be closed off independently — a feature that makes this 10 marla house layout Pakistan equally practical for joint family use or as a self-contained rental unit.

4 Bedroom 10 Marla House Plan Pakistan — Room Layout and Zoning

The 4 bedroom 10 marla house plan Pakistan across both floors gives a total of five bedrooms — two on the lower level and three on the upper floor. On the upper level alone, three full bedrooms serve different needs without competing for space or privacy.

The front bedroom at 15′-0″ × 12′-6″ sits at the front right corner, directly above the drawing room below. It has its own private walk-in dressing area at 5′-3″ × 5′-3″ leading into an attached bathroom at 5′-3″ × 8′-0″ — a complete suite that functions independently from the rest of the floor. This bedroom overlooks the front terrace and catches excellent morning light through its front-facing windows.

The TV lounge at 16′-9″ × 13′-0″ anchors the center of this 10 marla house plan Pakistan, with the 5-foot wide integrated corridor built directly into its floor area so no space is lost to dead hallways. Wide windows face the 5-foot side open courtyard on the left, maintaining the same continuous cross-ventilation and natural daylighting that runs through the lounge on the floor below.

The kitchen at 5′-4½” × 9′-0″ is a compact galley-style layout in the mid-right section, directly above the lower floor service zone. A window opening into the central open-to-sky air duct vents cooking heat and steam immediately outdoors. This kitchen, combined with the independent lounge, makes the upper floor of this 10 marla house map Pakistan a genuinely livable separate unit — not just a floor with extra bedrooms attached to a shared kitchen below.

A dedicated storage room at 4′-0″ × 8′-4½” sits between the kitchen and the rear bedroom zone, accessible from the main lounge corridor — a real enclosed space for suitcases, seasonal items and household overflow, keeping every bedroom in this ten marla house map Pakistan clutter-free.

10 Marla House Map Pakistan — Rear Bedrooms and Private Zone

The rear section of this 10 marla house map Pakistan is reserved entirely for the two private bedrooms, positioned at the back corners of the plot exactly as on the lower floor.

The rear left bedroom at 12′-0″ × 13′-0″ receives natural light and ventilation from windows facing the 5-foot side open courtyard. Its attached bathroom at 8′-4½” × 5′-0″ vents through a high-level window into the same side passage — a direct vertical continuation of the bathroom below, which keeps plumbing in a single stack and significantly reduces construction complexity.

The rear right master bedroom at 15′-9″ × 15′-6″ is the largest room across both floors of this 10 marla house plan Pakistan. At nearly 16 feet in both directions, it accommodates a premium king-size bed, a lounge seating arrangement, a full wardrobe setup and a vanity console without the room feeling crowded. Large rear-facing windows look out onto the open backyard, and its attached bathroom at 6′-7½” × 8′-4½” — the most spacious in the house — fits a wide vanity, water closet and enclosed shower comfortably.

The front terrace above the car porch completes the outdoor provision on this level. Sitting above the 18′-6″ × 18′-0″ porch footprint, this open-to-sky terrace is directly accessible from the staircase landing and the lounge entrance — a private elevated outdoor space that works equally well for morning tea, evening seating or simple outdoor relaxation away from street level.

Every plumbing point on this floor — all three bathrooms and the kitchen — sits directly above its counterpart below. In a 10 marla house layout Pakistan of this scale, that vertical alignment keeps pipe runs short, eliminates horizontal drainage complexity, and makes future maintenance straightforward without opening walls unnecessarily.

10 Marla House Naksha Pakistan — Naqsha and Ghar Ka Naksha Guide

The question every Pakistani family asks when they sit down to plan a home is where the rooms should go and how they should connect. It sounds simple but the answer determines decades of daily comfort or frustration. A 10 marla house naksha Pakistan that looks clean on paper but creates privacy problems, poor airflow or awkward circulation in real life is not good design — regardless of how neat its lines are on the page.

This naqsha house 10 marla Pakistan is built around one central idea: every room is placed where it is for a specific reason, not because it happened to fit. The drawing room sits at the front so guests can be received and seen out without walking through the private family areas. The lounge occupies the center so it connects every part of the house to a single accessible hub. The master bedroom sits at the rear so street noise and front door activity never reach the quietest room in the house. These are structural decisions — and they are what separates a well-planned 10 marla ghar ka naksha Pakistan from one that simply fills a page.

Naqsha House 10 Marla Pakistan — Zoning, Privacy and Room Placement

The naqsha house 10 marla Pakistan divides the layout into three distinct zones that move progressively from public to private as you go deeper into the house. The first zone covers formal entertaining — the drawing room and dining area — accessible directly from the entrance without passing through family spaces. The second zone is the family living core — the TV lounge and kitchen — the daily activity hub of the home. The third zone is the private retreat — the master bedroom and rear bedroom — always placed at the quietest back corner of the 35×70 house plan Pakistan.

This three-tier zoning is the single most important planning decision in this 10 marla house naksha Pakistan. Without it — when rooms are placed in a straight line or random order — privacy becomes nearly impossible to maintain. Guests walking in see bedrooms. Kitchen noise reaches the drawing room. Family members feel uncomfortable in their own home. This 10 marla ghar ka naksha Pakistan solves all of those problems through structure rather than rules.

The entrance lobby uses a sweeping curved wall that guides movement naturally toward the lounge without hard turns or dark corners. The drawing room carries a curved bay window facing the front lawn — creating a frame that keeps natural light inside the room for hours longer than a flat window. These are functional planning decisions that happen to produce a beautiful result — and that combination is what distinguishes a well-executed home naksha 10 marla Pakistan from a standard one.

Home Naksha 10 Marla Pakistan — Ventilation and Natural Light Strategy

The most common complaint Pakistani homeowners have about their homes is not that rooms are small. It is that the house feels dark and stuffy — that windows are open but air does not move and lights have to be switched on in the middle of the day. This is not a room problem. It is a naksha problem. When ventilation passages are added to a home naksha 10 marla Pakistan as an afterthought rather than built into the design from the start, that is always the result.

This 10 marla house naqsha Pakistan includes four dedicated open zones that work together to create a continuous air circuit across the entire layout. The 10-foot front lawn creates a breathing zone between the street and the drawing room — pulling fresh morning air into the entrance and lobby. The central 5-foot internal open-to-sky duct serves as a dedicated daylight shaft for the dining room and service areas — sending light and air straight down into spaces that would otherwise be completely enclosed. The 5-foot side passage on the left runs the full depth of the house, supplying the TV lounge and rear left bedroom with natural cross-ventilation throughout the day. The 5-foot rear open setback gives the master bedroom and rear bathrooms large exterior windows that pull fresh air through from the back.

These four openings work independently for their own zones but together they complete a cross-ventilation circuit where air flows naturally from one corner of this 10 marla house naksha Pakistan to the other. The benefit is not only comfort — it produces a measurable reduction in energy consumption and keeps indoor air quality consistently better year-round.

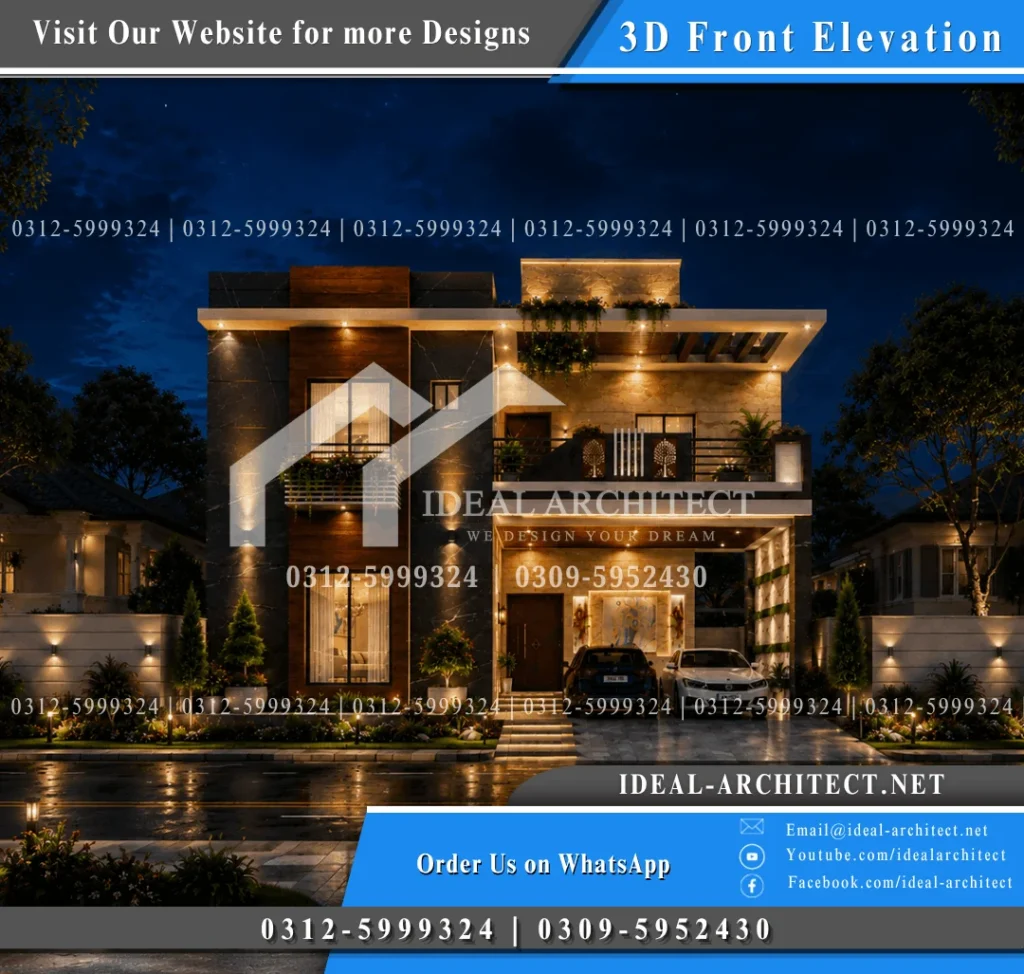

10 Marla House 3D Design Pakistan — Front Elevation and Modern Exterior

The front elevation of a home in Pakistan carries more weight than most homeowners initially expect. It is the face the entire neighbourhood sees, the first impression every visitor forms, and the single biggest contributor to a property’s long-term market value. Getting the 10 marla house 3d design Pakistan right means making decisions about massing, materials, proportion and depth together — not treating any one of them as secondary to the others.

This 10 marla front elevation Pakistan follows the Contemporary Modern architectural language — a direction that is gaining strong traction across premium Pakistani housing societies because of its bold geometric massing, clean lines and high-contrast material combinations. There are no traditional columns, no arches, no sloped rooflines — only confident structural forms that communicate quality through proportion rather than ornamentation.

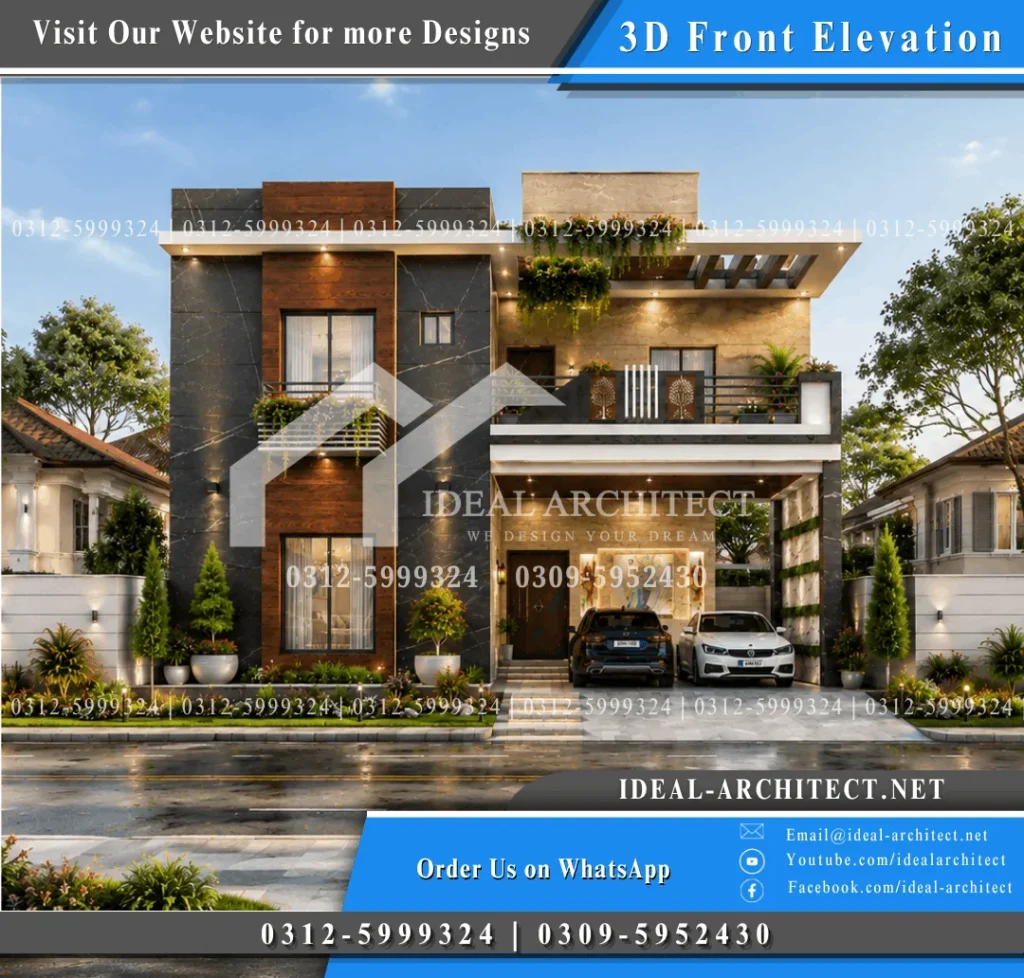

10 Marla House Elevation Pakistan — Massing and Composition

The facade of this 10 marla house elevation Pakistan is divided into two primary architectural volumes that work in deliberate contrast. On the left, a heavy dark vertical block projects forward from the building line — running from the base to the roofline in continuous charcoal cladding with floor-to-ceiling windows at each level. On the right, a lighter and more open horizontal configuration sits above the double car porch, forming a wide terrace with a recessed wall treatment in a warmer stone finish.

The dark heavy block on the left draws the eye upward through vertical lines — charcoal porcelain slabs and continuous window openings creating a strong ascending movement. Cantilevered white concrete slabs define the first floor balcony and main roofline, running horizontally across the facade and creating a powerful counterpoint to the vertical anchor on the left. A warm WPC wood-grain cladding strip runs vertically through the center of the dark block, introducing organic warmth into what would otherwise be a cold, monolithic surface.

This massing approach — heavy dark anchor on the left, lighter open terrace on the right — achieves a visual balance that reads very differently from the typical symmetrical facades seen across most Pakistani residential streets. Symmetry is predictable. This asymmetry is dynamic — and that quality is increasingly what homeowners planning a modern 10 marla house front elevation Pakistan are looking for.

The double car porch is designed column-free — a perimeter concrete frame carries the wide span above without any centre column interrupting the parking space. Two large SUVs park and manoeuvre freely, and the porch reads as a single open volume from the street. The main entrance door sits deeply recessed inside the porch, protected completely from rain and direct sunlight.

At the upper level, the terrace extends across the full width of the right wing. Its railing combines solid masonry blocks, powder-coated safety bars and decorative laser-cut CNC metal panels — a custom architectural element that gives the 10 marla house design pictures front view Pakistan a distinctive quality that standard railings cannot replicate. A concrete pergola above the terrace carries hanging greenery that cascades downward, softening the geometric lines without compromising the clean Contemporary Modern character of the 10 marla front elevation design Pakistan.

For those considering a spanish front elevation 10 marla Pakistan as an alternative — the same structural composition works. Replacing the charcoal porcelain with warm terracotta-toned cladding and introducing arch profiles into the window openings converts this massing into a Spanish or Mediterranean reading without changing the underlying structural plan. The flexibility of this composition is one of its genuine practical strengths.

Modern 10 Marla Front Elevation Pakistan — Materials and Exterior Finish

The material palette of this 10 marla house 3d design Pakistan uses four tones that together create a sophisticated warm-versus-cool contrast across the facade. Charcoal and black tones cover approximately 30 percent of the surface as the dark contrast base. Beige and cream stone finishes cover around 40 percent as the light-reflective background. Warm timber tones account for 15 percent as an organic accent. Crisp white concrete makes up the remaining 15 percent as the structural outline frame that separates and defines each zone.

Charcoal marble-textured porcelain slabs on the left vertical block deliver a premium look with zero water absorption and minimum maintenance — a practical advantage in Pakistan’s monsoon climate where high-maintenance natural stone or painted plaster surfaces deteriorate quickly. Warm WPC or HPL wood-grain cladding on the center accent strip provides the appearance of natural hardwood without the risk of warping, fading or moisture damage through Pakistan’s seasonal extremes. Beige travertine-textured stone on the terrace recessed walls reflects light into the deeper areas of the porch and provides a warm contrast against the darker primary surfaces. White reinforced concrete on the cantilevered bands and roof parapet, finished with UV-resistant exterior paint, completes the structural outline of this modern 10 marla house front elevation Pakistan.

Exterior lighting operates across three layers. Warm downlights under the cantilevered slabs and porch ceiling highlight the stone and timber textures at ground level. Feature uplights in the landscaped areas wash the dark facade walls from below and accentuate the porcelain surface texture at night. A dedicated perimeter light inside the porch entrance niche turns the parking bay into an elegant display space after dark — a detail that consistently draws attention in 10 marla house design pictures front view Pakistan and is noticed immediately by visitors.

Frequently Asked Questions

What is the plot size of a 10 marla house in Pakistan? A standard 10 marla plot in Pakistan measures 35×70 feet in many housing societies, giving a total built area of 2,450 square feet. This is one of the most common residential plot sizes found across Lahore, Islamabad, Rawalpindi and other major cities in Pakistan.

How many bedrooms can fit in a 35×70 house plan Pakistan? A single level 35×70 house plan Pakistan comfortably fits two bedrooms — both positioned at the rear of the plot for maximum privacy. With a double storey design, the total bedroom count rises to five — two on the lower level and three on the upper floor — making it a genuine 4 to 5 bedroom 10 marla house plan for larger families.

What is the difference between 10 marla house naksha and house map? Both terms refer to the same thing — the architectural floor plan or blueprint of the house. Naksha and naqsha are the Urdu terms used across Pakistan for a house drawing, while house map refers to the same technical document showing room dimensions, door and window positions, and the overall spatial layout.

Is a 35×70 house plan Pakistan suitable for a double storey home? Yes — a 35×70 double storey house plan Pakistan is one of the most practical configurations available for this plot size. The 35×70 footprint provides enough space for a fully independent lower floor and an equally self-contained upper floor, each with its own kitchen, lounge, bathrooms and bedrooms.

Can the upper floor of a 10 marla house plan Pakistan be used as a separate rental unit? Yes. The independent staircase in this 10 marla house plan Pakistan is specifically positioned to allow the upper floor to operate as a completely separate unit. With its own kitchen, lounge, three bedrooms and a private entrance from the landing, the upper floor functions independently without any shared access through the lower floor.

What is the best front elevation style for a 10 marla house in Pakistan? Contemporary Modern is the most popular choice for a modern 10 marla house front elevation Pakistan right now — particularly across Bahria Town, DHA and other premium housing societies. Spanish front elevation 10 marla Pakistan is equally popular for families who prefer warm terracotta tones, arched window profiles and textured plaster finishes. Both styles work within the same structural massing — the material palette and window profile are what differentiate them.

What materials are best for a 10 marla house elevation in Pakistan? For a 10 marla house elevation Pakistan, the most durable and low-maintenance combination is charcoal or beige porcelain slabs for the primary cladding surfaces, WPC or HPL wood-grain panels for accent areas, tempered glass with powder-coated aluminium frames for windows, and UV-resistant exterior paint on all concrete surfaces. These materials handle Pakistan’s monsoon season, summer heat and winter cold without requiring frequent repainting or sealing.

How is natural ventilation maintained in a 10 marla house naksha Pakistan? This 10 marla house naksha Pakistan maintains natural ventilation through four dedicated open zones — a 10-foot front lawn, a 5-foot side open courtyard, a central open-to-sky air duct and a 7-foot rear open setback. Together these four passages ensure every room in the house has a functional exterior window and receives natural cross-ventilation throughout the day without depending on mechanical cooling.
